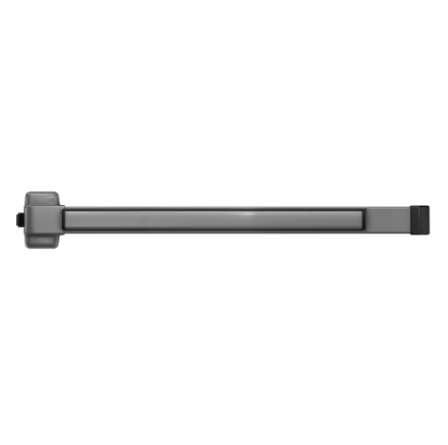

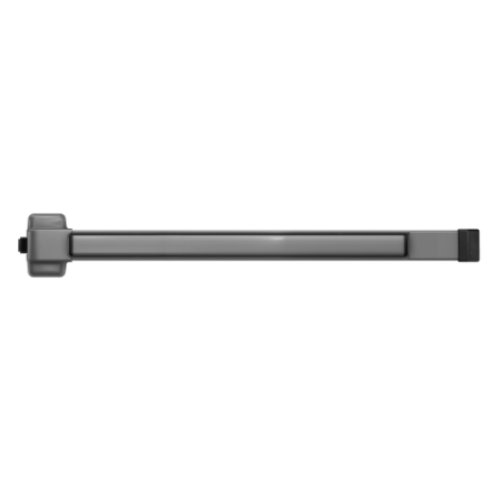

Von Duprin LD22EO Rim Touch Bar Exit Device, Less dogging - Exit only

Product Details

Von Duprin LD22EO Rim Touch Bar Exit Device, Less dogging - Exit only

Device Handing:Non-Handed.

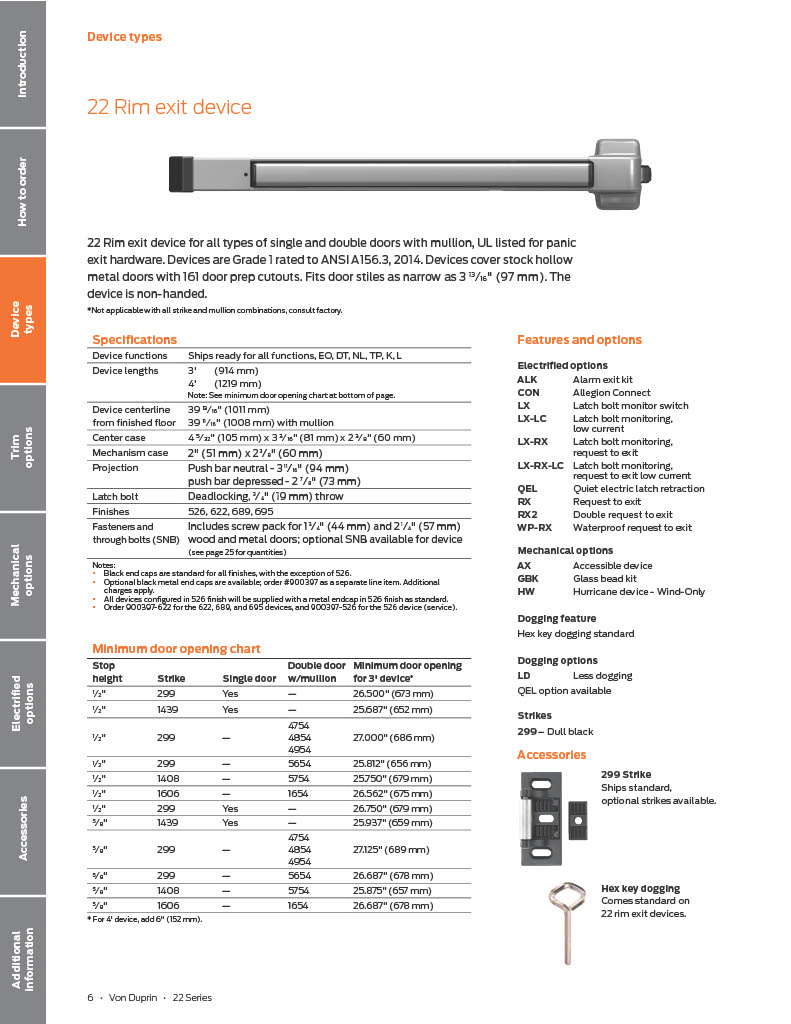

Device Lengths:3' (914mm), 4' (1219mm). see page 13 (22 Series Catalog).

Finishes:SP28 - Sprayed Aluminum (689), SP313 - Sprayed Dark Bronze (695) - 622 - Flst Black Coated.

Strike:299 strike Dull Black.

Dogging Feature:Less dogging.

Fasteners:Includes 1 3/4" (19mm) 2 1/4" (57mm) Wood & Metal Doors; Optional SNB available for device.

Latch Bolt:Deadlocking, 3/4" (19mm) throw.

Device Centerline from Finished Floor:39 13/16" (1011mm) at center of device; 39 11/16" (1008mm) with Mullion.

Fits door stiles as narrow as 3 - 13/16" (97mm).

All 22 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model:Von Duprin LD22EO, SP28, SP313, LD22EOSP28 , LD22EOSP313

Von Duprin LD22EO Rim Touch Bar Exit Device, Less dogging - Exit only

SKU: LD22EO

In Stock

Finish *

Size *

$430.08

$672.00

You saved $241.92

About this item

For all types of single and double doors with mullion, UL listed for Panic Exit Hardware, ClickHereFor the 22 Series Exit device Trims.

Resources

No resources added to this product.

Von Duprin LD22EO Rim Touch Bar Exit Device, Less dogging - Exit only

Device Handing:Non-Handed.

Device Lengths:3' (914mm), 4' (1219mm). see page 13 (22 Series Catalog).

Finishes:SP28 - Sprayed Aluminum (689), SP313 - Sprayed Dark Bronze (695) - 622 - Flst Black Coated.

Strike:299 strike Dull Black.

Dogging Feature:Less dogging.

Fasteners:Includes 1 3/4" (19mm) 2 1/4" (57mm) Wood & Metal Doors; Optional SNB available for device.

Latch Bolt:Deadlocking, 3/4" (19mm) throw.

Device Centerline from Finished Floor:39 13/16" (1011mm) at center of device; 39 11/16" (1008mm) with Mullion.

Fits door stiles as narrow as 3 - 13/16" (97mm).

All 22 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model:Von Duprin LD22EO, SP28, SP313, LD22EOSP28 , LD22EOSP313

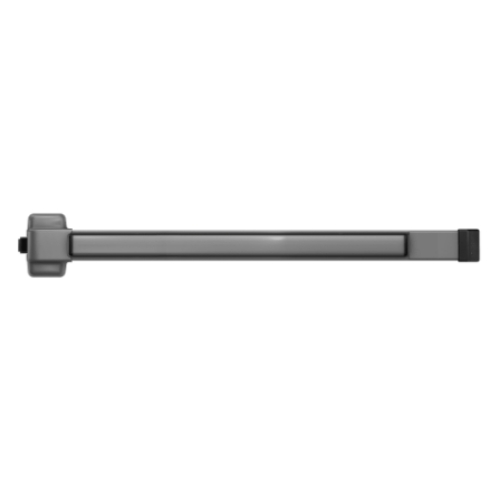

LD22EO 3 689
Von Duprin LD22EO Rim Touch Bar Exit Device, Less dogging - Exit only

Product code: LD22EO

In Stock

$672.00

$430.08

LD22EO 3 689
Von Duprin LD22EO Rim Touch Bar Exit Device, Less dogging - Exit only

Product code: LD22EO

In Stock

$672.00

$430.08
