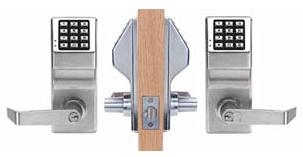

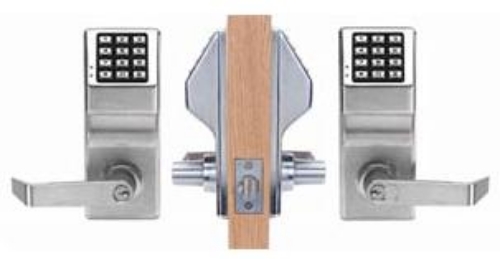

Alarm Lock Trilogy DL5200 Double Sided Digital Lock

The Alarm Lock Trilogy DL5200 is a battery-operated double-sided digital cylindrical keypad lock with programmable keypads on BOTH sides of the door. Code entry from either side unlocks the door; programming on one side automatically applies to both sides. The mechanical key override operates from the primary side only; the secondary-side key is for battery access only. ANSI/BHMA Grade 1 heavy-duty cylindrical, UL Listed with 3-hour fire-rated latchbolt, UL 10C Positive Pressure compliant, ADA-compliant lever, FCC certified. Powered by 5 AA alkaline batteries (supplied) rated at 120,000 cycles. Finishes: US26D Satin Chrome or US10B Oil Rubbed Bronze. Backset: 2-3/4" or 2-3/8". Weatherproof for indoor and outdoor installation, +151°F to -31°F operating range. SKU DL5200. In stock.

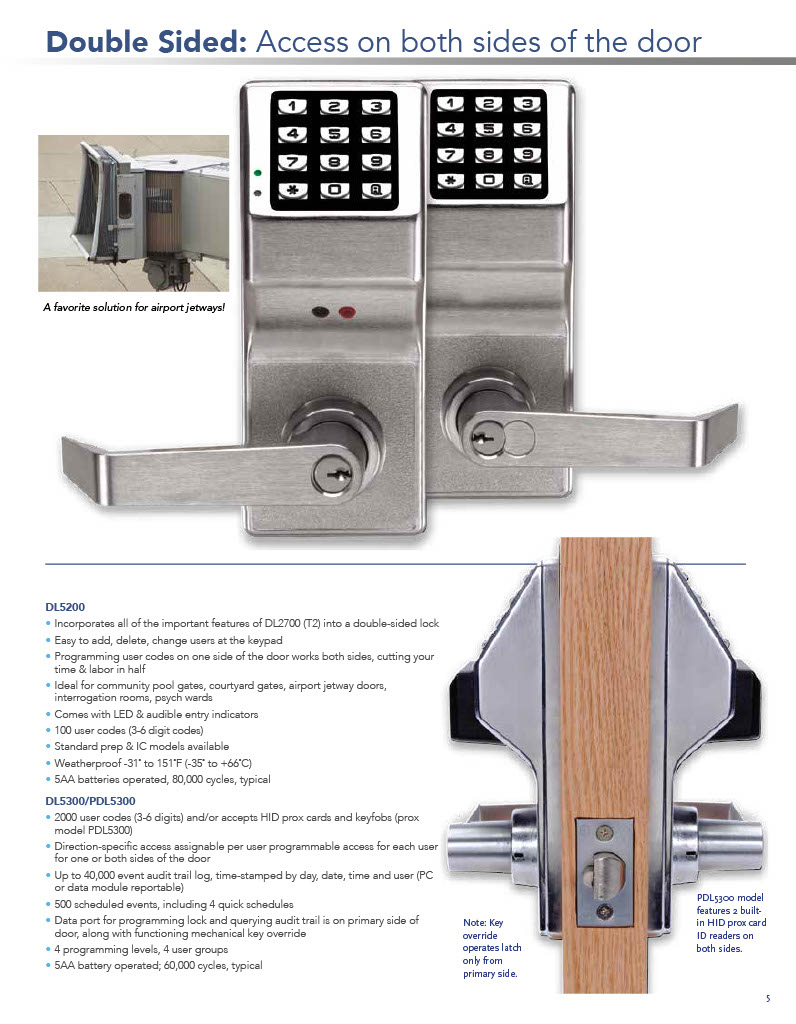

About the Double-Sided Keypad Function

Most Alarm Lock Trilogy models (DL2700, DL2800, DL3200) are single-sided: keypad on the outside of the door, mechanical egress trim on the inside. The DL5200 is the double-sided variant: programmable keypad on both sides, requiring code entry from either direction. This makes it the right specification for communicating doors between secure and non-secure spaces, healthcare openings between residential and visiting areas, gate enclosures where access is controlled in both directions, and any application where unauthorized passage in either direction must be prevented. Single-side programming is the operational advantage: facility managers do not need to walk to both sides of the door and program codes twice.

Specifications

Cylinder: 6-pin solid brass, SC1 (Schlage C) keyway, key override included. Latchbolt: 1/2" throw reversible, UL Listed 10C Positive Pressure, 3-hour fire rated. Strikes included: 1-1/8" by 2-3/4" T strike and 1-1/4" by 4-7/8" ASA strike. Door thickness: 1-5/8" to 1-7/8". Backset: 2-3/4" standard or 2-3/8". Handing: non-handed. Door prep: standard ANSI A115 Series with additional through-bolt holes. Keypad: all-metal vandal-resistant 12-button on each side. Power: 5 AA alkaline (supplied), 120,000 cycle rating, low-battery audible alert, visual and audible entry indicators, FlexDrive motor. Operating temperature: +151°F to -31°F (+66°C to -35°C). Compliances: ANSI/BHMA Grade 1, UL Listed, UL 10C Positive Pressure, FCC Certified, ADA-compliant lever.

Programming Capacity

Holds up to 100 user codes, 1 Master code, 10 Manager codes, and up to 3 one-time user codes. Individual, group, or total user lockout codes. Manager or Master can engage passage mode to keep the door unlocked during business hours or scheduled events. All programming is performed through the keypad without software or PC connection. For larger user database transfers and audit-trail-style operations, the optional AL-DTMIII Data Transfer Module supports bulk programming.

Applications and Where to Specify

The DL5200 is most commonly specified for community pool and courtyard gates, airport jet bridge doors and crew passages, communicating doors between psychiatric or Alzheimer care areas in healthcare facilities, interrogation rooms and secured corridors in police buildings, multi-tenant parking garage access, and any opening where two-way keypad control is needed without integration into a wired access control panel. Standalone operation means no network or panel infrastructure is required; the lock holds its programming in non-volatile memory through battery changes.

This Is a Keypad Lock, Not a Prox Lock

The DL5200 uses keypad code entry only. Buyers searching for double-sided proximity card readers should specify the Alarm Lock PDL5300 instead, which adds HID prox card and key fob support to the same double-sided platform. The IC-core variant of this keypad lock is the Alarm Lock Trilogy DL5200IC, which accepts interchangeable cores from Best, Falcon, Arrow, KSP, Medeco Keymark, and Kaba Peaks (IC versions prepped for Yale, Medeco, Sargent, Corbin Russwin, and Schlage available on request). For outdoor and gate installations, the STI-6516 Weather Resistant Cover is the recommended accessory.

Where This Sits in the Alarm Lock Trilogy Catalog

The DL5200 is the keypad model on the DL5200 Double Sided Digital Lock parent series page within the Alarm Lock Trilogy catalog, under Electronic Keypad/Proximity Locks in the broader Keypad/Prox Locks section.
