Alarm Lock Trilogy ETDL S1G 26D V99 Exit Trim Lock w/ Audit Trail - Satin Chrome - Von Duprin 99 Series

About this item

The Alarm Lock Trilogy ETDLS1G/26DV99 is a battery-operated keypad exit trim lock with a 40,000-event audit trail, configured for the Von Duprin 99 Series rim exit device in 26D Satin Chrome. The S1G designation identifies the straight lever style and generic rim cylinder. The panic exit device itself is not included and must be ordered separately. American Locksets is an authorized dormakaba Alarm Lock dealer stocking the ETDLS1G/26DV99 with same-day shipping and free shipping on orders over $300.

Alarm Lock Trilogy ETDL: What It Does and How It Works

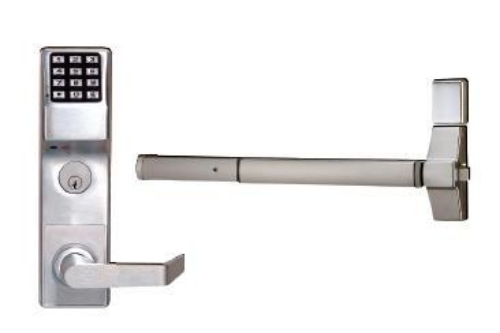

The ETDL Series retrofit exit trim converts any compatible panic exit device into a standalone keypad-controlled access point without wiring, without cutting into the door, and without replacing the panic hardware already installed. The outer trim mounts to the exit device, the inside panic bar continues to provide life-safety egress at all times, and the keypad on the outside lever controls entry from the unsecured side.

The clutch mechanism is the key engineering feature. The lever rotates freely without retracting the latch until a valid access code is entered. This protects the spindle and internal mechanism from stress caused by unauthorized lever-forcing attempts. When the correct code is entered, the clutch engages and the lever retracts the latchbolt for entry. The inside panic bar remains independent and always provides instant egress regardless of whether the exterior is locked.

Temperature range is -20 F to +150 F, making the ETDL suitable for both interior and exterior exit device installations.

ETDLS1G/26DV99 Specifications

• SKU: ETDLS1G26DV99

• Model: Alarm Lock Trilogy ETDL S1G, 26D, V99

• Lever Style: S1G, Straight lever

• Cylinder: G, Generic rim cylinder. Uses standard rim cylinder for key override function. Schlage C1 keyway

• Finish: 26D Satin Chrome (US26D)

• Compatible Exit Device: Von Duprin 99 Series rim exit device

• Door Thickness: 1-3/4 inch standard (1-5/8 inch to 1-7/8 inch range)

• Handing: Non-handed. Fully field reversible

• Power: 5 AA alkaline batteries included, mounted on the inside of door. No hardwiring required

• Keypad: Weather-resistant all-metal construction, 12-button. All functions programmable through the keypad or via DL-Windows software

• User Codes: 2,000 total codes. Master, manager, supervisor, and user code hierarchy

• Audit Trail: Real-time clock, up to 40,000 event time/date-stamped audit trail. Records: unlock/lock events, program mode changes, user entry, keypad lockout, remote release events, and unauthorized code attempts

• Scheduled Events: Up to 500 lock/unlock schedules with time zone support

• Audit Trail Access: Polled via AL-PCI Interface Cable and DL-Windows software (sold separately) to any PC. On-site printing available with AL-IR1 hand-held infrared printer (sold separately). Data Transfer Module AL-DTMII transfers program data and retrieves audit trail without a direct PC connection

Compatible Exit Device Brands

The Trilogy ETDL Series is engineered to retrofit onto panic devices from most major manufacturers. Confirmed compatible platforms beyond Von Duprin 99 include: Marks M9900, Corbin ED5000, Yale 7100, Dorma 9300, Arrow 3800, Sargent 8800, Precision 1100 and 2100, Cal Royal 9800, and Hager 4500 Series. This listing is specifically configured for the Von Duprin 99 rim device. Confirm the specific device brand and model on your opening before ordering.

A proximity/keypad version is available as the ETPDL Series for facilities requiring card and PIN dual authentication at the exit device trim.
