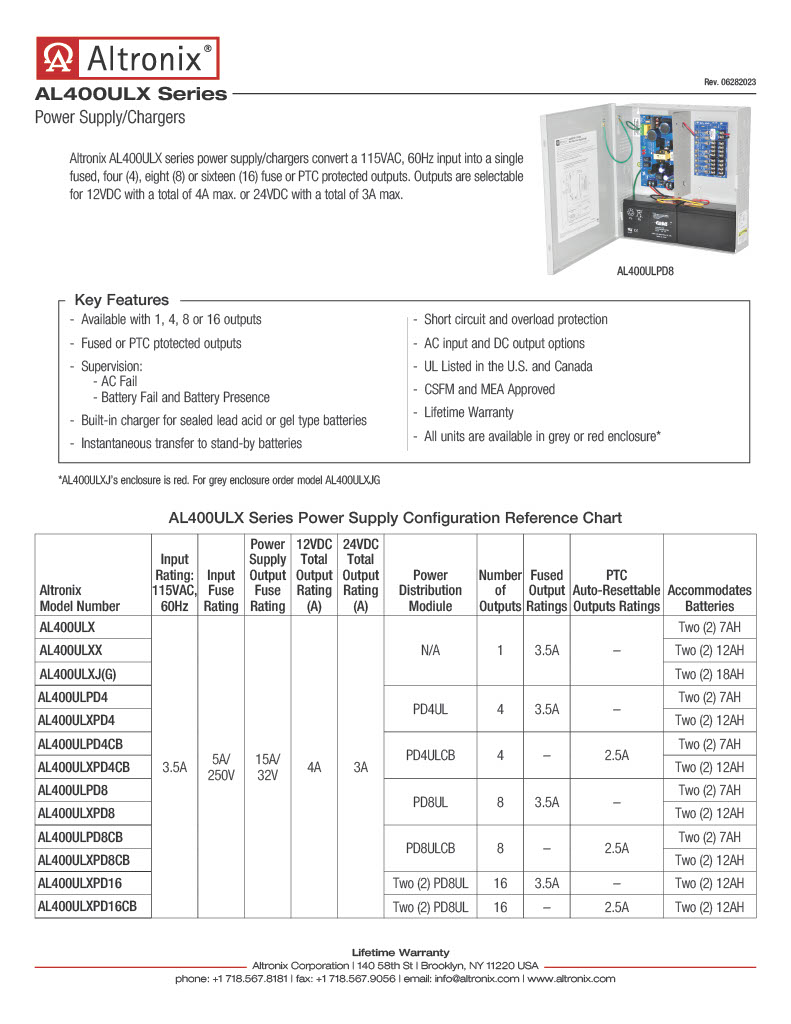

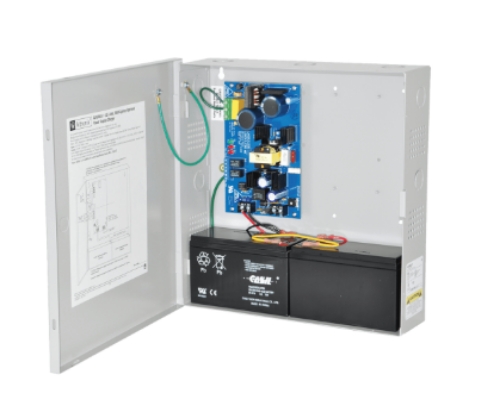

Altronix AL400ULX Power Supply/Charger, Input 115VAC 60Hz at 3.5A, Single Output, 12VDC at 4A or 24VDC at 3A, Grey Enclosure

Altronix AL400ULX Power Supply/Charger, Input 115VAC 60Hz at 3.5A, Single Output, 12VDC at 4A or 24VDC at 3A, Grey Enclosure, Lifetime Warranty

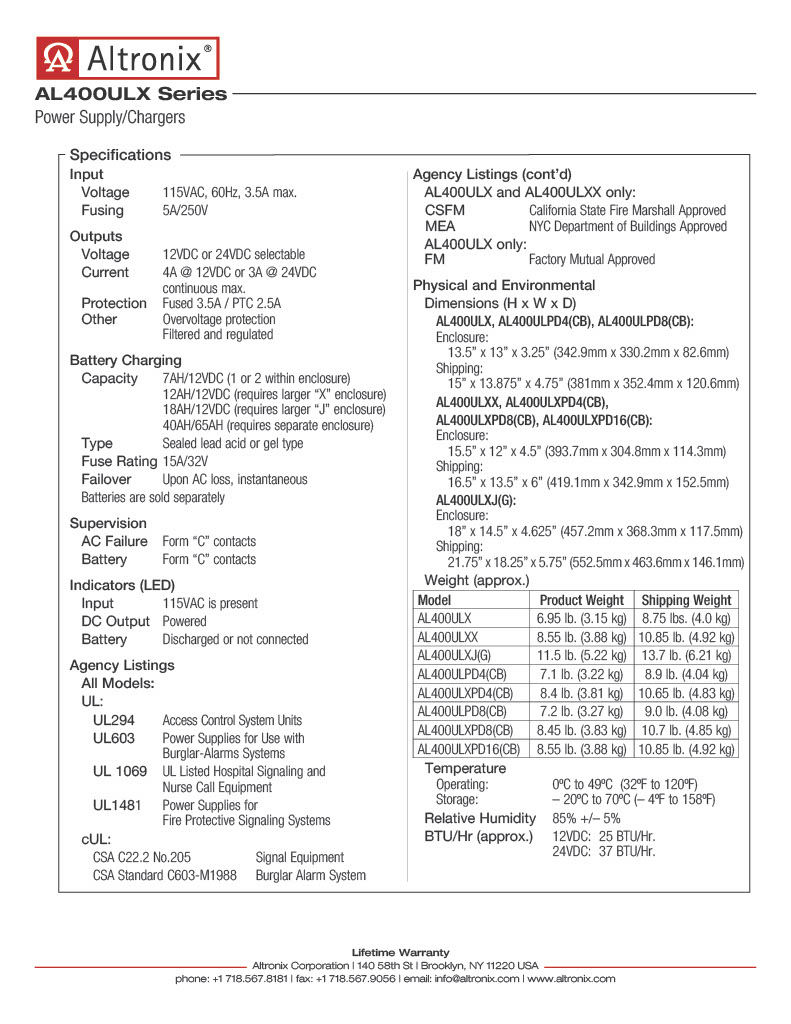

Specifications:

Input: 115VAC, 60Hz, 3.5A. Input fuse rated @ 3.5A/250V.

Output: 12VDC or 24VDC selectable output. Burglar Alarm Applications(UL 603): 12VDC = 11.5VDC-13VDC. 24VDC = 23VDC-26VDC. 12VDC @ 4A or 24VDC @ 3A supply current. Class 2 Rated power limited output. Filtered and electronically regulated output. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails.

Supervision: AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts).

Visual Indicators: AC input, DC output and Battery LED indicators.

Temperature: Operating 0 C to 49 C (32 F to 120 F). Storage - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 12VDC: 25 BTU/Hr. - 24VDC: 37 BTU/Hr. System AC input VA requirement: 402.5VA.Enclosure: Wall mount enclosure for indoor use. Accommodates up to two (2) 12VDC/7AH Batteries.

*Batteries sold separately

Dimensions: 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D). 1/2" and 3/4" combination knockouts.

Product Weight: 6.95 Lbs. (3.15 kg). Shipping Weight: 8.75 Lbs. (4 kg).
