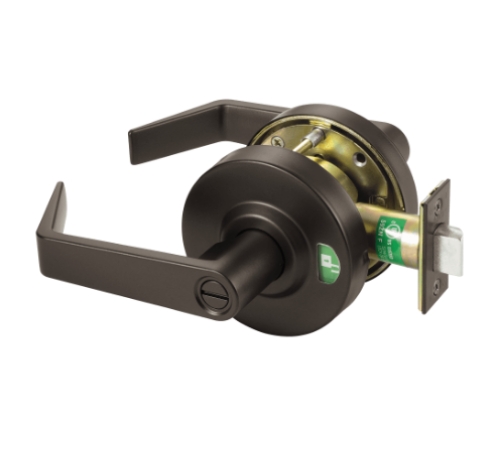

Arrow APL02-ST-613E Grade 1 Privacy Cylindrical Lock, w/Indicator, Dark Oxidized Bronze Finish

APL02-ST-613E Grade 1 Privacy Cylindrical Lock, Non-Keyed, Sierra, 3-1/2" Diameter Rose, Indicator with Icons, Non-Handed, Dark Oxidized Bronze Finish

Eliminate potentially embarrassing situations and provide peace of mind with the APL Series Grade 1 cylindrical lock with status indicator. With a visual display of the occupancy status, the indicator notifies individuals if the door is locked or unlocked, providing an increased level of privacy.

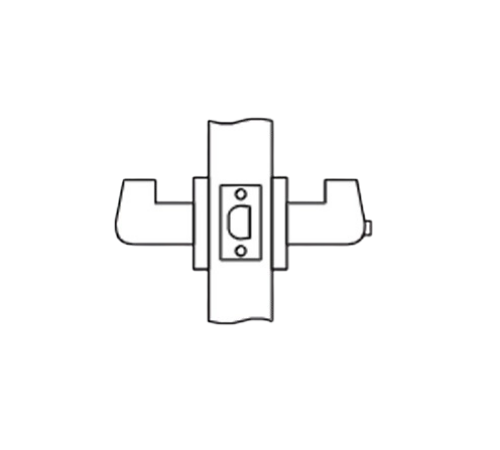

Function: APL02- Latch operated by lever either side except when outside lever is locked by pushing inside button. Pushing inside button changes indicator display status outside. Outside lever unlocked by turning inside lever, using emergency coin turn, or closing door. Inside lever always operates latch. Typical Applications:

RestroomsQuiet RoomsNursing Mothers RoomsDressing RoomsConference RoomsFeatures:

Bright red or green window display with padlock iconIdeal for retrofit applicationsPrivacy function with automatic unlock when rotating inside lever or closing doorAvailable in 4 beautiful finishes (605, 613E, 626, BSP)Patent pending designSuitable for multiple applicationsCertified ANSI/BHMA A156.2 Grade 1 and UL/cUL listed for 3 hour doors3-year mechanical warrantyBenefits:

 Status indicator window allows the user to clearly see if the door is locked or  unlocked at a glanceQuick and easy installation makes upgrading to accommodate a status indicator simple and cost effectiveAllows for one motion egress and prevents lockouts of unoccupied roomsIncorporating indicator in the lock, eliminates the need for a separate deadbolt and allows for one motion egressMeets strength and durability standards for high use applications

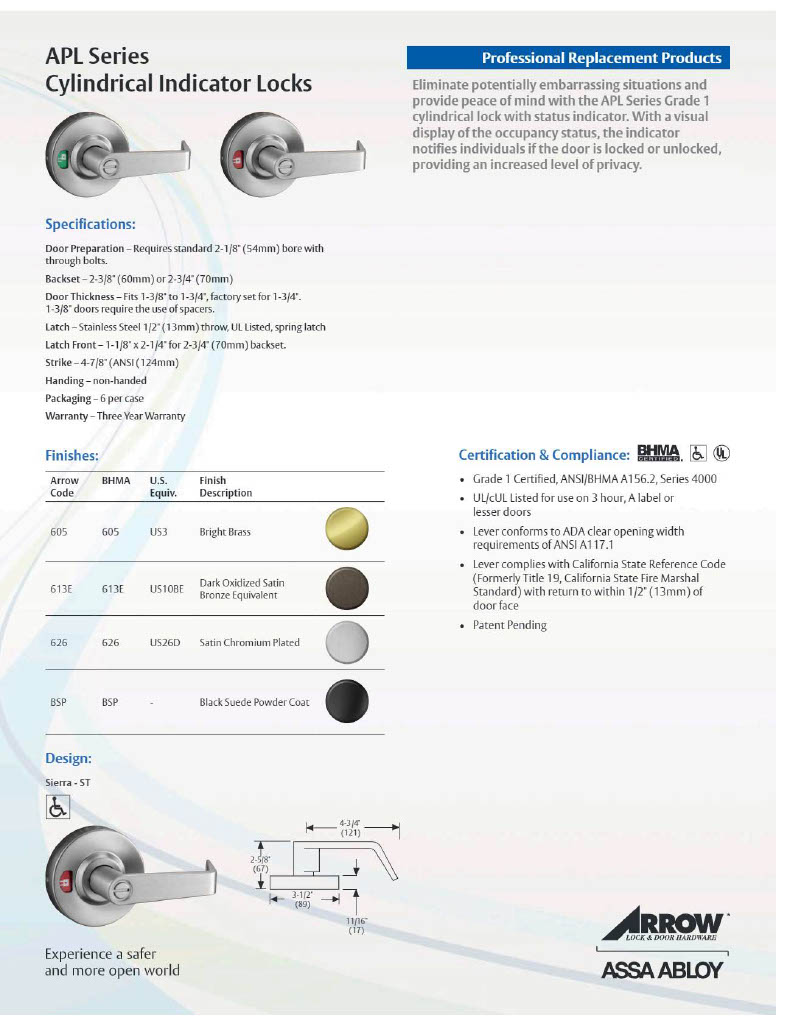

Door Preparation:Requires standard 2-1/8" (54mm) bore with through bolts.

Backset: 2-3/8" (60mm) or 2-3/4" (70mm)

Door Thickness:Fits 1-3/8" to 1-3/4", factory set for 1-3/4". 1-3/8" doors require the use of spacers.

Latch:Stainless Steel 1/2" (13mm) throw, UL Listed, spring latch

Latch Front:1-1/8" x 2-1/4" for 2-3/4" (70mm) backset.

Strike:4-7/8" (ANSI (124mm)

Handing:non-handed

Warranty:Three Year Warranty

Certification & Compliance: - Grade 1 Certified, ANSI/BHMA A156.2, Series 4000 - UL/cUL Listed for use on 3 hour, A label or lesser doors - Lever conforms to ADA clear opening width requirements of ANSI A117.1 - Lever complies with California State Reference Code (Formerly Title 19, California State Fire Marshal Standard) with return to within 1/2" (13mm) of door face - Patent Pending
