9875/9975 mortise lock device for all types ofsingle or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 2001 Grade 1.

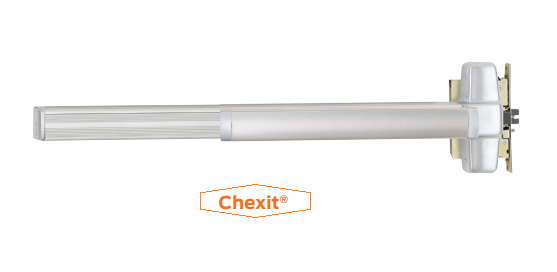

The Von Duprin Chexit device is designed for controlled egress applications. It meets both life safety and security needs, as well as the requirements of NFPA 101 for "Special Locking Arrangement" and IBC "Special Egress-Control Devices". All control inputs, auxiliary locking, local alarm and remote signaling outputs are self-contained in the Chexit assembly. Numerous configurable options allow the device to be customized for the specific code or application requirements.  The standard Chexit device sounds an alarm and keeps the door secured for 15 seconds following an exit attempt with immediate release upon fire.

The Chexit device includes a 6" x 20" decal for application on door. - PUSH UNTIL ALARM SOUNDS. DOOR CAN BE OPENED IN 15 SECONDS.

Chexit typical applications Chexit single door with options - The Chexit is used as an access control device. The card reader allows access. Also shown in this application is an external horn and door position switch. The auxiliary horn is used for increased volume in remote locations. Using a door position switch gives added security to the opening in case the door is not reclosed. With the Chexit disarmed, the opening functions as a normal exit device. If card readers are required on both sides of the door, the normally closed contacts of the readers should be wired in series.

• Meets International Building Code (IBC) for Delayed Egress and Controlled Egress Systems. U- L305, UL10C, and UL294 listed.

Requires PS914  Power Supply More details see next tab>

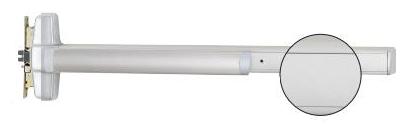

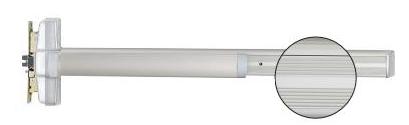

The 9875 device has a smooth mechanism case and the 9975 device has a grooved case.

Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4" (121mm).

The 7500 Mortise lock is equipped with a 3/4" (19mm)anti-friction latch bolt which is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.

Strike:575 Dull Black.

Fasteners:Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available

Finishes:US3 - Polished Brass , US4 - Dull Brass, US10 - Dull Bronze, US15 - Satin Nickel, US26 - Polished Chromium, US26D - Dull Chromium, US26D-AM Antimicrobial Satin Chrome, US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, 315 - Black,US32D - Satin Stainless Steel available with 98 Series only.

Dimensions:

Device lengths: - 3' 2'4' to 3' (711mm to 914 mm) Door Size. - 4' 2'10" to 4' (864 mm to 1219 mm) Door Size.

Device Centerline from Finished Floor: - 39-13/16" (1011 mm). - 39-11/16" (1008 mm) with Mullion.

Center Case Dimensions:8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)

Projection: - Pushbar Neutral 3-13/16" (97 mm) - Pushbar Depressed 3-1/16" (78 mm)

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model: Von Duprin CXA9875, CXA9975, 9CXA875EO, CXA9975EO, US4, US10, US10B, US26, US26D, US28, US32D

Motor-driven blocking actuator provides quiet and energy-efficient operation.

Flexible field configurable functions, including:   - Nuisance delay 0, 1, 2 or 3 seconds.   - Audio sound levels high and low.   - Power-up setting can be armed and disarmed.   - RCM and DE5300 are also available to accommodate various door configurations and applications.
