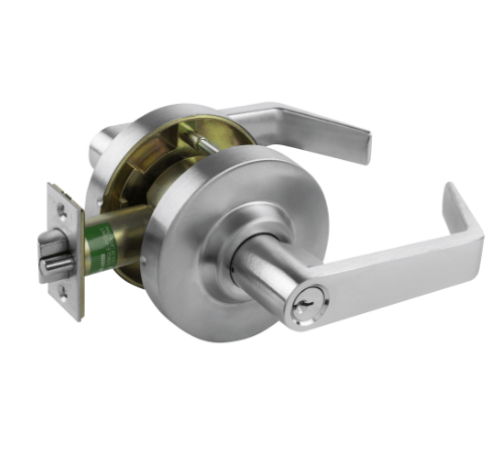

Arrow QL87 SR - Grade 1 Classroom Lever Lock - Freewheeling Lever

Arrow QL87 SR - Grade 1 Classroom Lever Lock - *ANSI F84 -Freewheeling Lever*

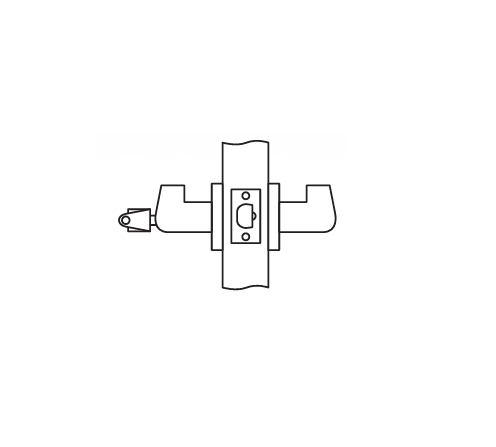

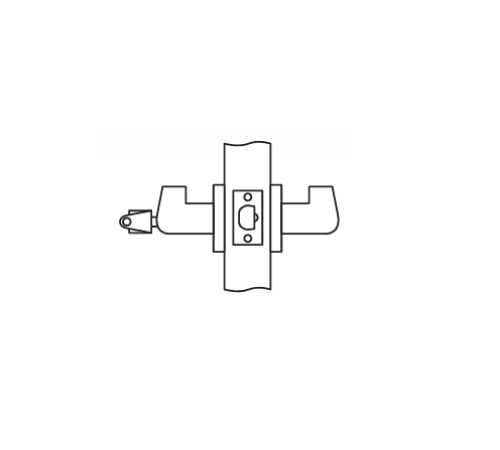

Latchbolt operated by lever either side except when key outside locks outside lever. Inside lever always free. Key outside locks/unlocks outside lever only.

Door Preparation: Requires standard  2-1/8" (53.97mm) bore through door.

Backset:  2-3/4" (69.85mm)

Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.

Latch: Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions.

Latch Front – 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.

Handing: Non-handed

Strike: 4-7/8" ANSI (123.83mm)

Exposed Trim: QL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. QL Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2-17/32" (64.5mm).

Freewheeling Lever

Cylinder: Solid brass 6 pin, Arrow AR and Schlage CS Keyway

Keys: 2 brass keys

Finishes: 605 US3 03 Bright Brass, 614 US10BL 10BP Dark Oxide Bronze, Clear Coated, 626 US26D 26D Satin Chromium Plated

Design:Sierra SR

Warranty: Ten Year Warranty

Model:Arrow QL87SR, QL87SR26D, QL87SR10BP, QL87SR3, QL87SRIC26D, QL87SR26DSC

Certification & Compliance

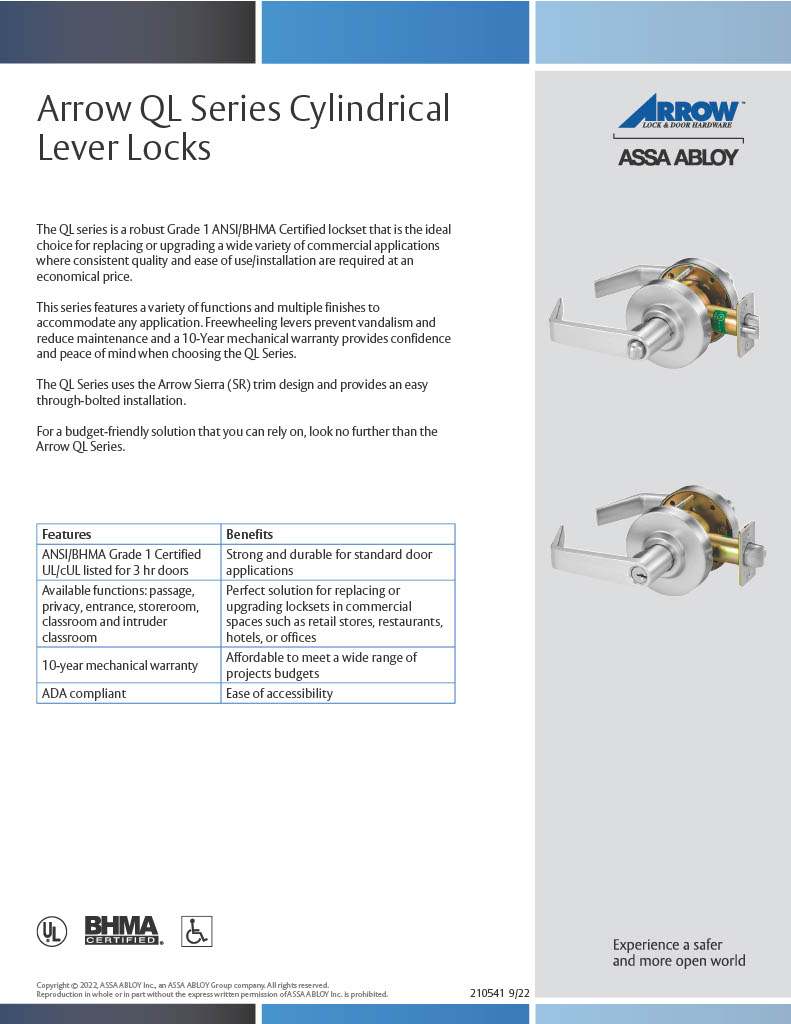

Arrow QL Series Cylindrical Lever Locks are BHMA Grade 1 Certified, ANSI/BHMA A156.2, Series 4000

All Arrow QL Series Locks are U.L. and c.U.L. list for use on 3 hour, A label or lesser doors

Meets American with Disabilities Act Requirements
