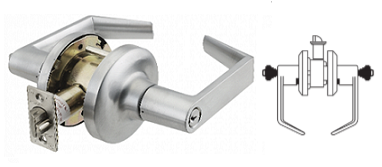

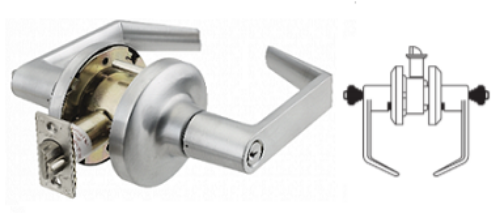

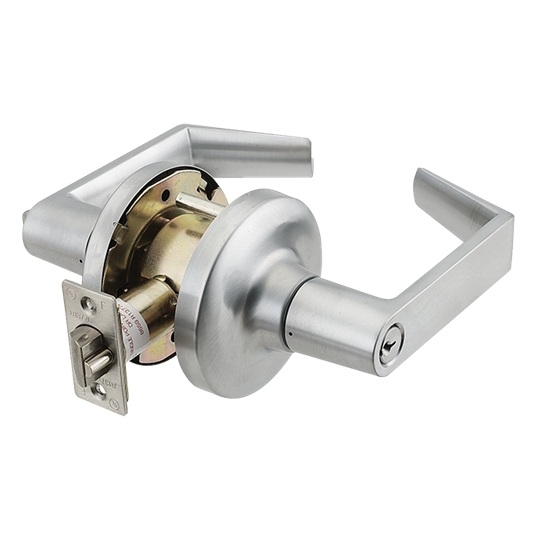

Cal-Royal CAL07 US26D Grade 1, Classroom Intruder Lock, Satin Chrome

Cal-Royal CAL07 US26D Grade 1, Classroom Intruder Lock - Satin Chrome

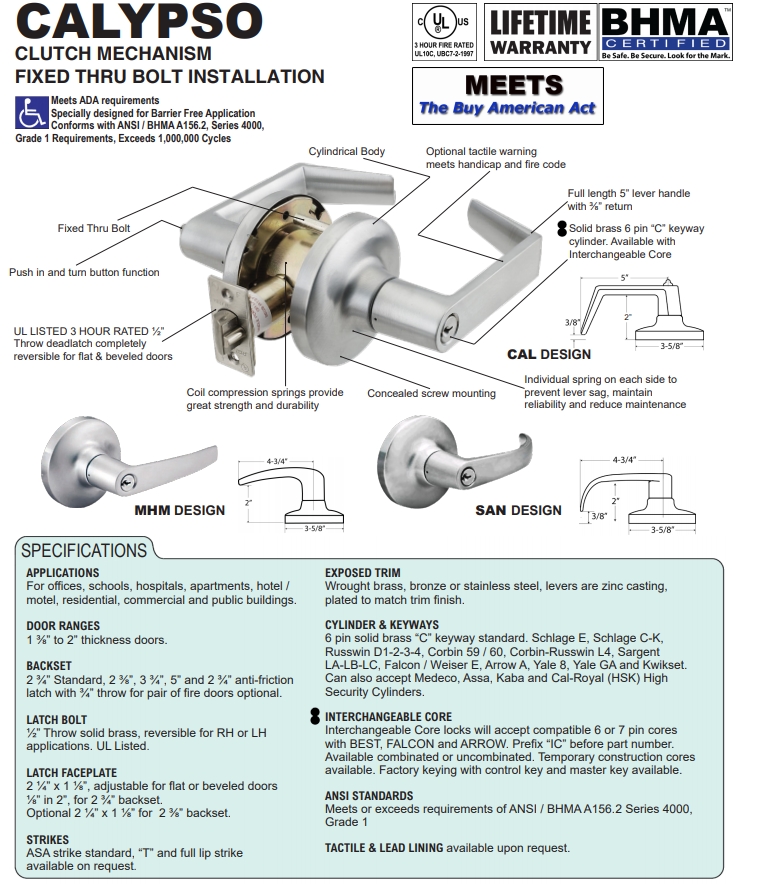

ANSI F110

FUNCTIONS: Latch bolt is operated by rotating the inside lever, or rotating the outside lever only when not locked from the inside or outside key. Outside lever is locked and unlocked by turning the key inside or outside lever. Inside lever cannot be locked.

DOOR RANGES: 1 3/8" to 2" thickness doors.

BACKSET: 2 3/4" Standard, 2 ⅜", 3 3/4, 5" and 2 3/4" anti-friction latch with 3/4" throw for pair of fire doors optional.

LATCH BOLT: 1/2" Throw solid brass, reversible for RH or LH applications. UL Listed.

LATCH FACEPLATE: 2 3/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2", for 2 3/4" backset. Optional 2 1/4" x 1 1/8" for 2 3/8" backset.

STRIKES ASA: Strike standard, "T" and full lip strike available on request.

EXPOSED TRIM: Wrought brass, bronze or stainless steel, levers are zinc casting, plated to match trim finish.

CYLINDER & KEYWAYS: 6 pin solid brass "C" keyway standard.

ANSI STANDARDS: Meets or exceeds requirements of ANSI / BHMA A156.2 Series 4000, Grade 1

TACTILE & LEAD LINING available upon request.
