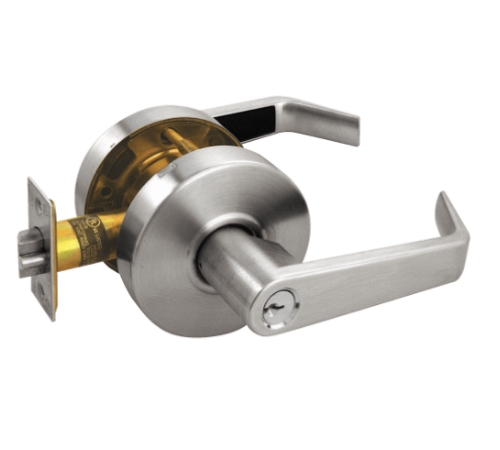

Arrow RL12-SR - Grade 2 Storeroom Lock, Sierra Lever

Arrow RL12-SR - Grade 2 Storeroom Lock, Sierra Lever

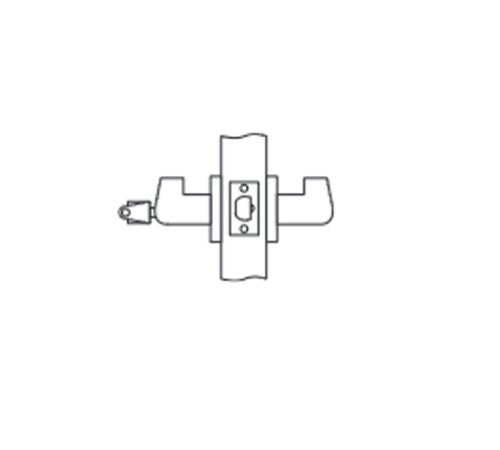

Outside lever always rigid. Latchbolt operated by key in outside lever, or by turning inside lever.

Finishes: US3 Polished brass, clear coat (605) -  US4 Satin brass, clear coat (606) - US10 Satin Bronze (612) - US10B Oxidized bronze, oil rubbed (613) - US26 Polished chrome (625) - US26D Satin chrome (625)

Lever: SR - Sierra

Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.

Handing: Non-handed

Backset: 2-3/8" (60.31mm) or 2-3/4" (69.85mm)

Latch: Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions

Latch Front: 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.

Strike: 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.

Cylinder: Conventional - Solid brass 6 pin. Arrow "A" keyway standard. C keyway optional.  Interchangeable Core Lockset prepared to use with 6 or 7 pin interchangeable core.  Will accept cores manufactured by Arrow, Best, Falcon, Medeco Keymark, ASSA, and others.*

Keys: 2 brass keys

Thru-bolts: Removable thru-bolts standard on RL Series

Warranty: Five Year Mechanical Warranty

Model: Arrow, RL12, RL12SR, 28RL12SR, RL12SR3, RL12SR4, RL12SR10, RL12SR10B, RL12SR26, RL12SR26D

RL12SR, 28-RL12-SR, RL12-SR-3, RL12-SR-4, RL12-SR-10, RL12-SR-10B, RL12-SR-26, RL12-SR-26D

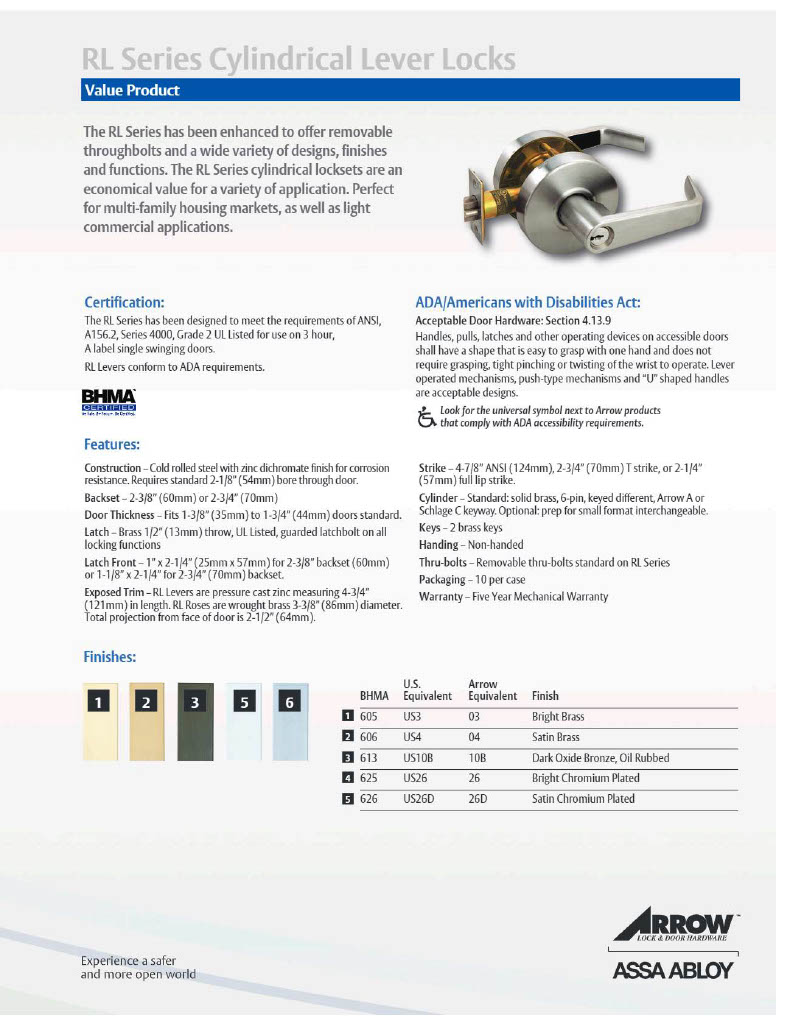

Construction: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.

Exposed Trim: RL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. RL Roses are wrought brass 3-3/8" (85.73mm) diameter. Total projection from face of door is 2-1/2" (63.5mm).

Certification: The RL Series has been designed to meet the requirements of ANSI, A156.2, Series 4000, Grade 2 UL Listed for use on 3 hour, A label single swinging doors.

ADA: RL Levers conform to ADA requirements.
