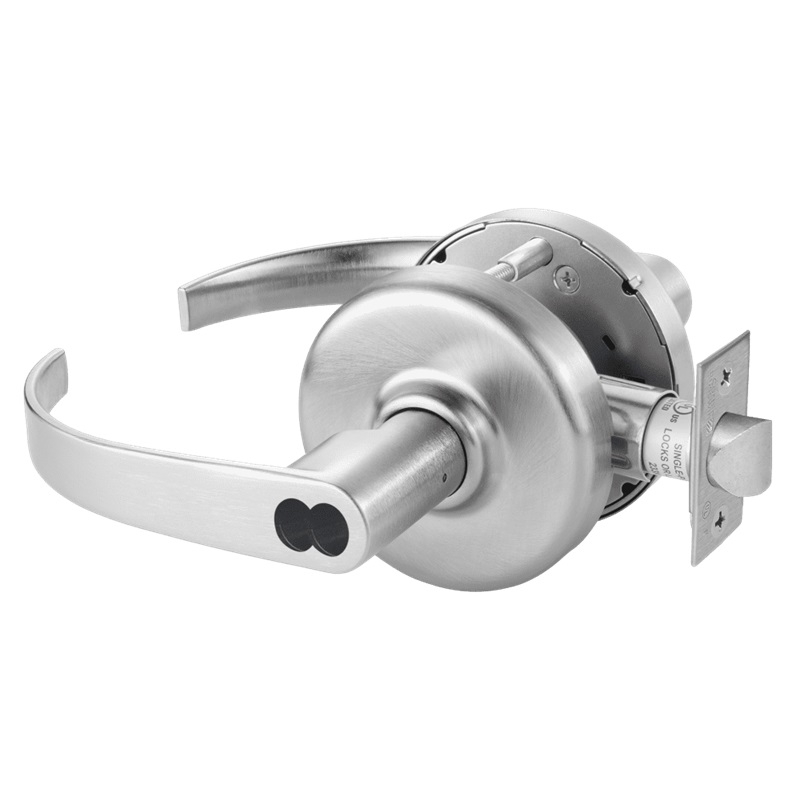

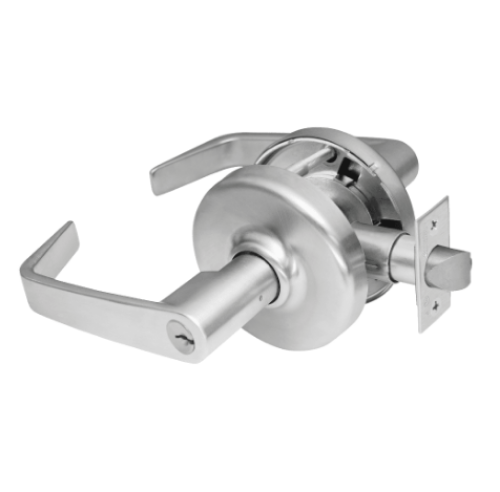

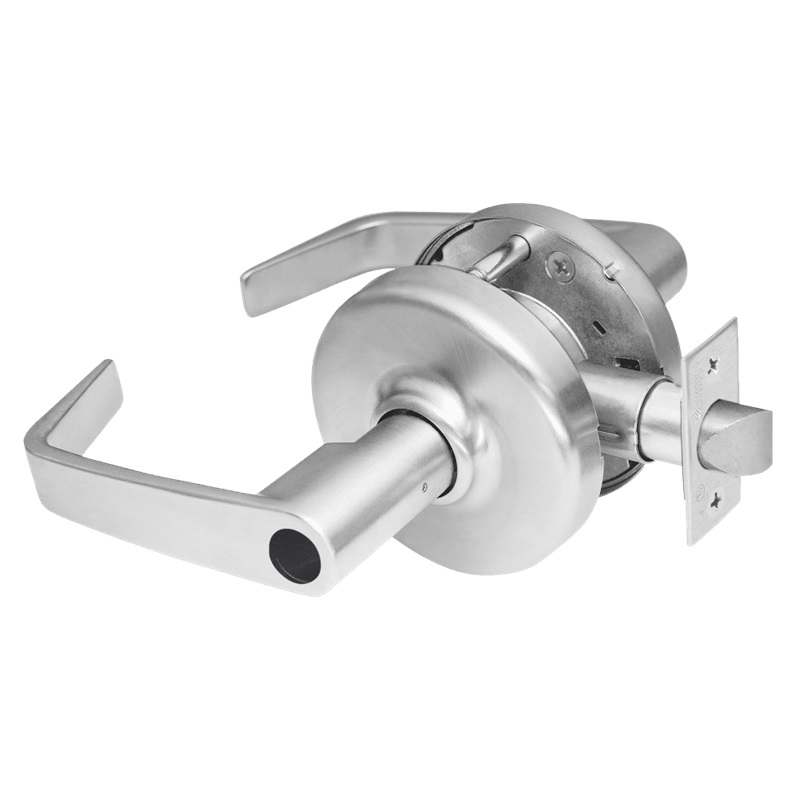

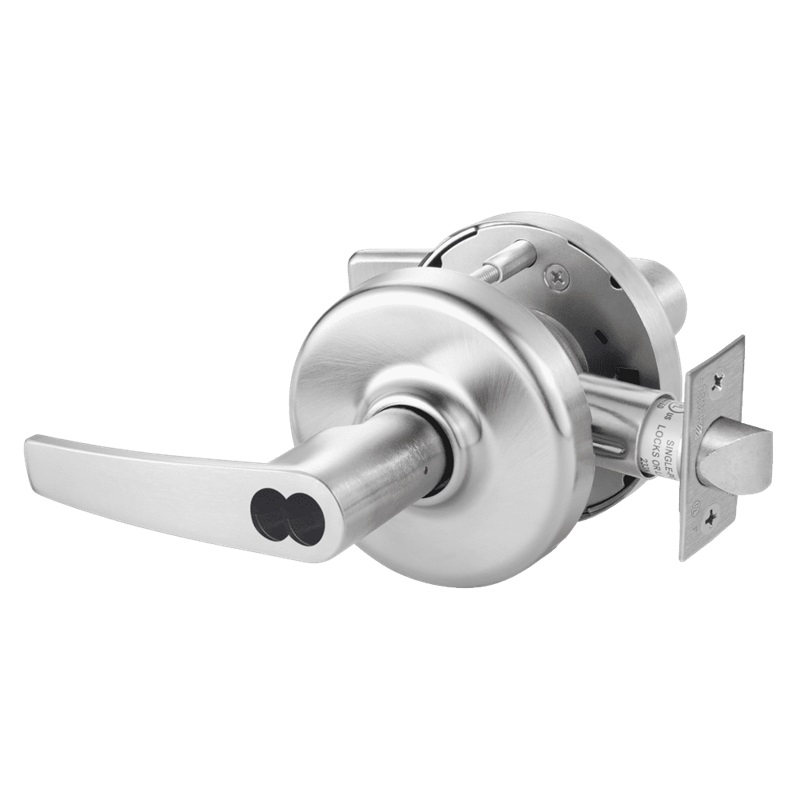

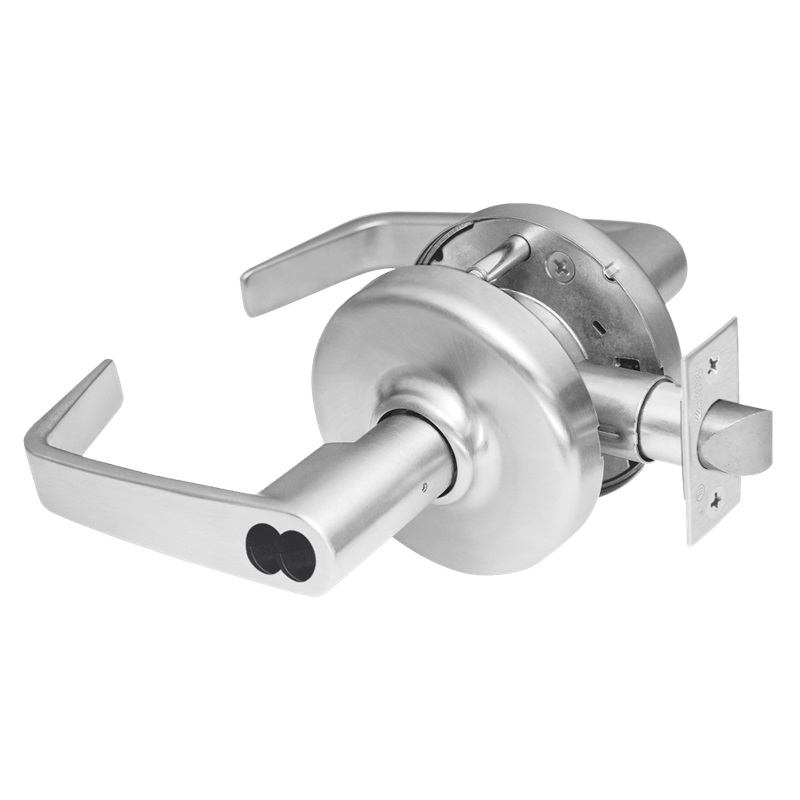

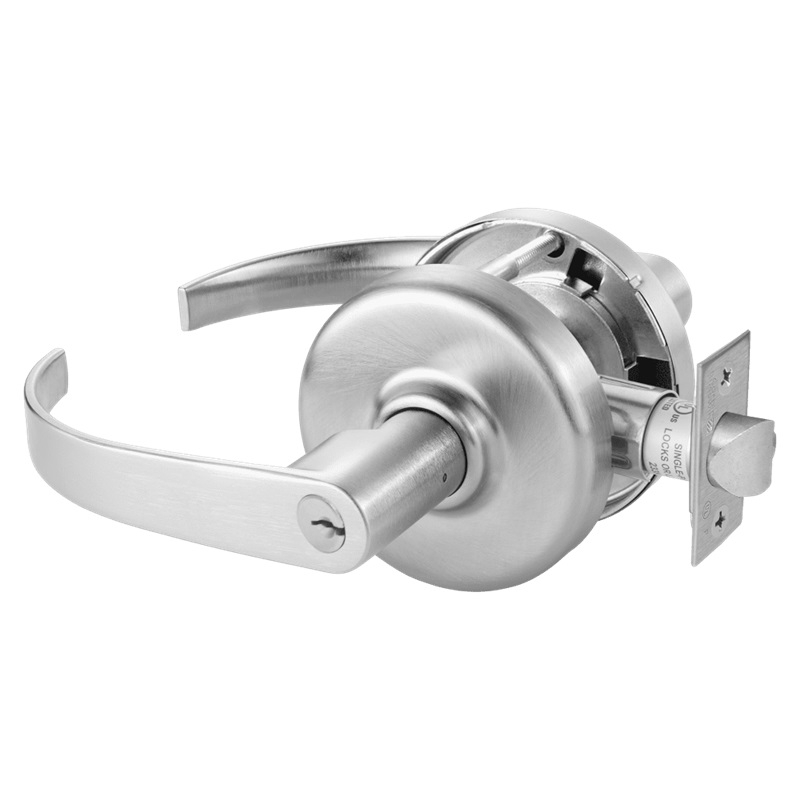

Corbin Russwin CL3861 Grade 2 Entry or Office Cylindrical Lock

Corbin Russwin CL3861 Entry or Office Lock

ANSI F82

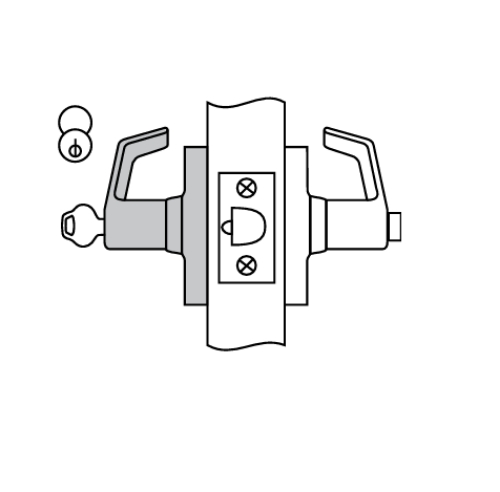

Deadlocking latchbolt by lever either side, except when push button locks outside lever. Push button released by turning inside lever or by key in outside lever. (Lever handle is free-wheeling in locked position.) Closing door does not release push button. Inside lever always free.

Handing: Non-handed.

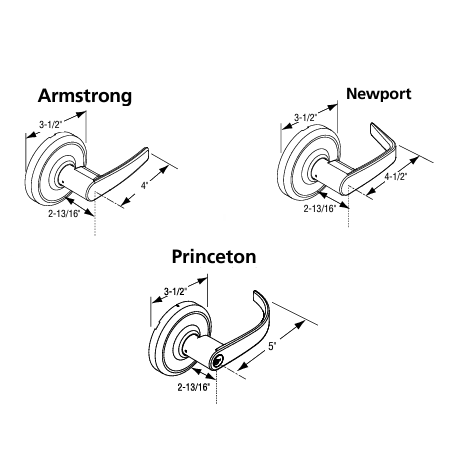

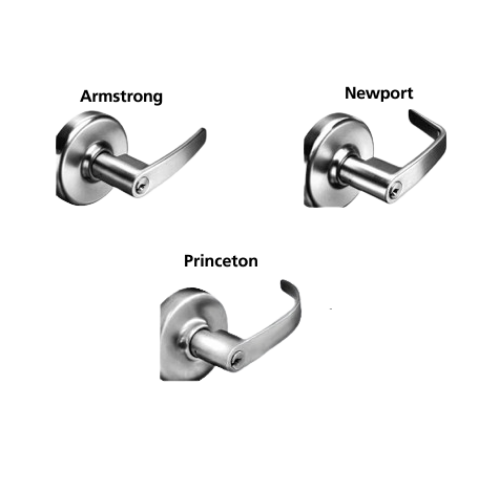

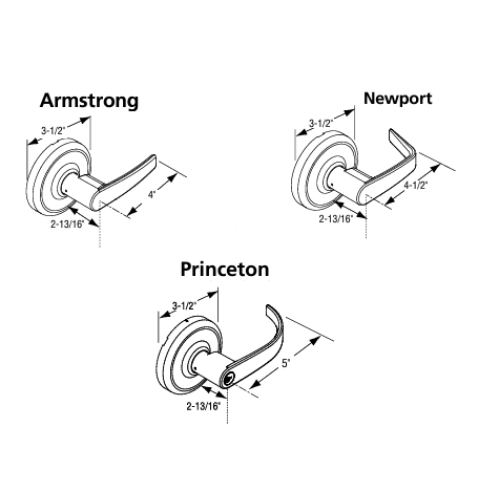

Lever Style: Armstrong AZD, Newport NZD, Princeton PZD

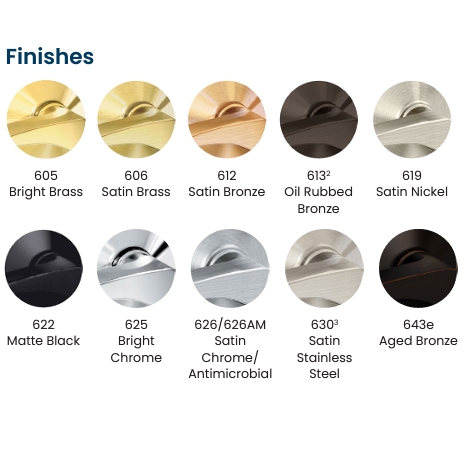

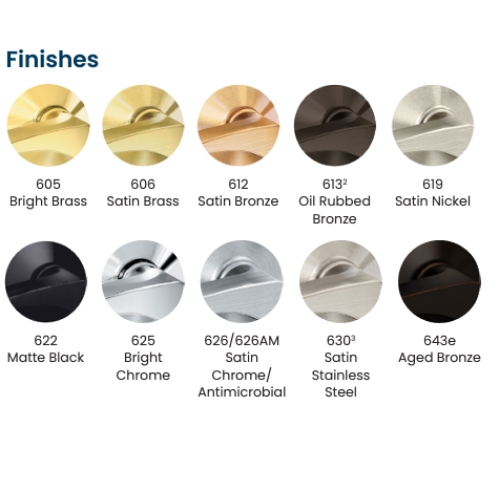

Finishes: 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Dark Oxidized Satin Bronze, Oil Rubbed, 625 (US26) Bright Chromium Plated, 626 (US26D) Satin Chromium Plated

Door Thickness: Adjustment Standard 1-3/8" to 1-3/4"; factory set for 1-3/4" doors.

Lock Chassis: Steel, zinc dichromated for corrosion resistance.

Backset: 2-3/4" standard. Optional: 2-3/8", 3-3/4" and 5".

Latchbolt: 1/2" throw latch with universalfloatingfront to fit both flat and beveled doors. 2-1/4" x 1-1/8" square corner front for 2-3/4" backset standard.

Auxiliary Latchbolt: Deadlocking latchbolt prevents manipulation when door is closed.

Strike: ANSI curved lip strike standard, 4-7/8" x 1-1/4" x 1-1/4" lip to center. Optional strikes, lip lengths and ANSI wrought strike box available

Cylinder: Brass, 6-pin, L4 keyway, standard. Keying Features Available Conventional 6-pin, Conventional 7-pin Master keying, Construction master keying, Interchangeable core (IC)

Keys: Two nickel silver standard.

Warranty: Seven-year limited.

Model:Corbin Russwin CL3861, AZD, NZD, 605, 606, 612, 613, 625, 626, CL3861AZD, CL3861NZD,  CL3861NZD605, CL3861NZD606, CL3861NZD612, CL3861NZD613, CL3861NZD625, CL3861NZD626, CL3861AZD605, CL3861AZD606, CL3861AZD612, CL3861AZD613, CL3861AZD625, CL3861AZD626, CL6

Advantages

Lever Release for vandal resistance

Solid cast levers

ANSI Grade 2 certification

UL 3-hour fire rating

Independent lever return springs

Through-bolts on door for solid attachment

Covers ANSI/DHI door prep A115.18 - 1994 Spider Cut Out

Certification/Compliance

ANSI Meets A156.2 Series 4000, Grade 2. Meets A117.1 Accessibility Code.

Federal Meets FF-H-106C. California State Reference Code (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1/2" of door face.

UL /ULc All locks listed for A label single doors. Letter F and UL symbol on latch front indicate listing.
