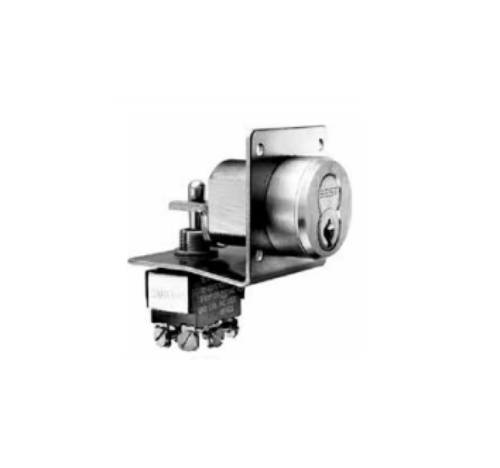

BEST 1W7K4626, W Series Electric Switch Lock, Toggle Switch, DPDT, Key Position 2 - 2 o'clock, Key Position 3 - 10 o'clock, Satin Chrome

BEST 1W7K4 626, W Series Electric Switch Lock, Toggle Switch, DPDT, Key Position 2 - 2 o'clock, Key Position 3 - 10 o'clock, Satin Chrome BEST offers a line of electric switch locks available in various "on-off" and "momentary" keyed switch functions.Circuitry variations are available in single, double and triple pole with varied voltage and amperage ratings. Units may be keyed into any BESTsystem. The BEST interchangeable core offers versatility and adaptability for new and existing electrical controls, panels, machines, etc. Features:- Double D lock cylinder prevents slipping and turning- Screw terminals on all switch locks (except the 1W7A1) provides ease of installation- All switches are UL recognized or listedNote on functionality: Switch lock keys can only be removed in the 12 o'clock position

Contact rating:110 VAC, 15 amps, resistive220 VAC, 10 amps, resistiveHorsepower rating:250 VAC, 1/2 HPOperating temperature:up to +221 F (+105 C)Switch type:DPDT (Double pole-double throw)Switch lock action:MomentaryNumber of switches per assembly:One
