BEST 1W7P4626, W Series Electric SwitcLock, Quad Switch, h 2 SPDT, Key Position 2 - 2 o'clock, Key Position 3 - 10 o'clock, Satin Chrome

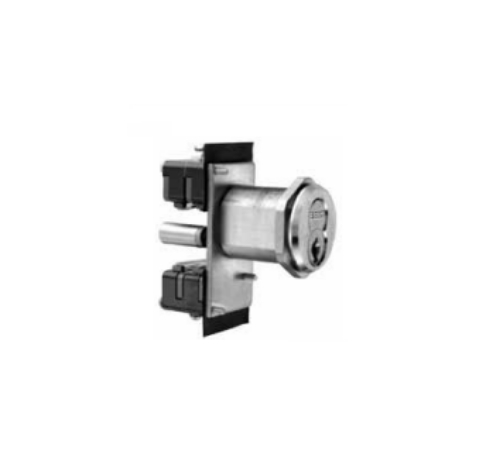

BEST 1W7R4 626, W Series Electric Switch Lock, Quad Switch, 2 SPDT, Key Position 2 - 2 o'clock, Key Position 3 - 10 o'clock, Satin Chrome BEST offers a line of electric switch locks available in various "on-off" and "momentary" keyed switch functions.Circuitry variations are available in single, double and triple pole with varied voltage and amperage ratings. Units may be keyed into any BESTsystem. The BEST interchangeable core offers versatility and adaptability for new and existing electrical controls, panels, machines, etc. Features:- Double D lock cylinder prevents slipping and turning- Screw terminals on all switch locks (except the 1W7A1) provides ease of installation- All switches are UL recognized or listedNote on functionality: Switch lock keys can only be removed in the 12 o'clock position

Contact rating:30 VDC, 15 amps, resistive125 VDC, 0.6 amps, resistive250 VDC, 0.3 amps, resistive125 VAC, 15 amps, resistive125 VAC, 5 amps, lamp250 VAC, 15 amps, resistiveHorsepower rating:125 250 VAC, 1/2 HPOperating temperature:up to +176 F (+80 CSwitch type:SPDT (Single pole-double throw)Switch lock action:MomentaryNumber of switches per assembly:1W7P4: Two, 1W7R4: Four
