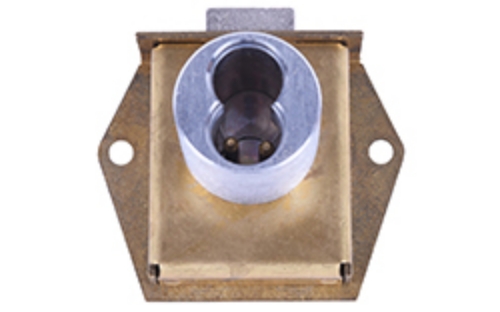

BEST 5L7ML2-626, L Series Standard Cabinet Lock, 7-Pin Housing; Mortise Mounting, Latchbolt, Vertical, Satin Chrome

BEST 5L7ML2-626, L Series Standard Cabinet Lock, 7-Pin Housing; Mortise Mounting, Latchbolt Latch Type, Vertical Hand, Satin Chrome

**

5L Series Latchbolt

Specifications:

Latchbolt function- Retracted by key to unlock. Key may be withdrawn only in locked position Deadbolt function- Locked and unlocked by key. Must be locked by key after door is closed. Key may be withdrawn in locked position and unlocked position Backset - 7⁄8" Body thickness - 1⁄2" Case- Length 2 1⁄8", width 2 19⁄32", thickness 21⁄32", hole spacing 2 3⁄16" Cylinder diameter - 1 1⁄8" Cylinder length - 1 1⁄16" Deadbolt - 3⁄4" x 25⁄64" - 1⁄2" throw Door thickness - 5⁄8" minimum for rim type, 21⁄32" minimum for mortise type. Face - 1 7⁄8" x 21⁄32" Latchbolt - 3⁄4" x 25⁄64" - 9⁄32" throw Material- Nickel plated zinc case and bolts, stainless steel cover, phosphor bronze spring. Strike plate- 3⁄64" x 11⁄16" x 1 7⁄8", hole spacing 1 7⁄16", 1 1⁄4" wide lip. T-Option- Key is removeable only in locked position. (Deadbolt Only)
