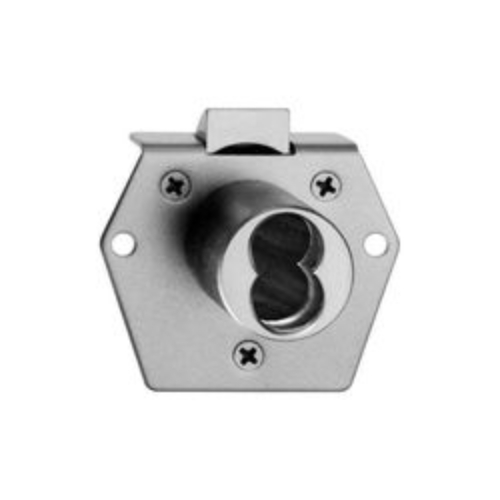

BEST 5L7RL2-626, L Series Standard Cabinet Lock, 7-Pin Housing; Accepts all BEST Cores, Rim Mounting, Latchbolt, Vertical, Satin Chrome

BEST 5L7RL2-626, L Series Standard Cabinet Lock, 7-Pin Housing; Accepts all BEST Cores, Rim Mounting, Latchbolt, Vertical, Satin Chrome

**

Specifications

Latchbolt function- Retracted by key to unlock. Key may be withdrawn only in locked position

Deadbolt function- Locked and unlocked by key. Must be locked by key after door is closed. Key may be withdrawn in locked position and unlocked position

Backset- 7⁄8"

Body thickness- 1⁄2"

Case- Length 2 1⁄8", width 2 19⁄32", thickness 21⁄32", hole spacing 2 3⁄16"

Cylinder diameter- 1 1⁄8"

Cylinder length- 1 1⁄16"

Deadbolt- 3⁄4" x 25⁄64" - 1⁄2" throw

Door thickness- 5⁄8" minimum for rim type, 21⁄32" minimum for mortise type.

Face- 1 7⁄8" x 21⁄32"

Latchbolt- 3⁄4" x 25⁄64" - 9⁄32" throw

Material- Nickel plated zinc case and bolts, stainless steel cover, phosphor bronze spring.

Strike plate- 3⁄64" x 11⁄16" x 1 7⁄8", hole spacing 1 7⁄16", 1 1⁄4" wide lip.

T-Option- Key is removeable only in locked position. (Deadbolt Only)
