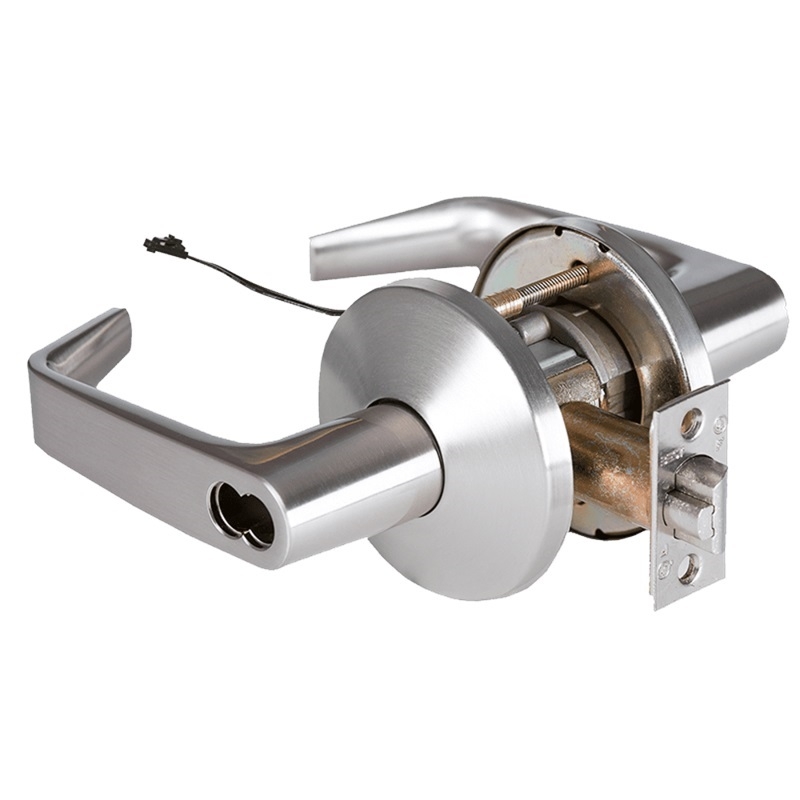

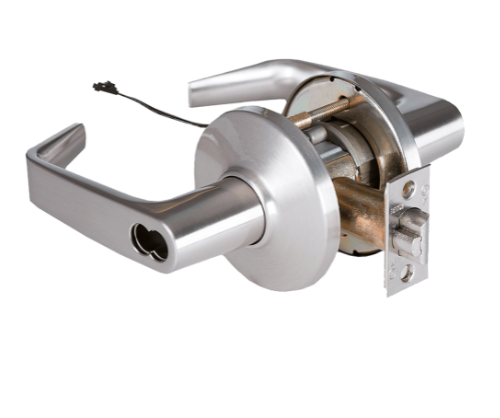

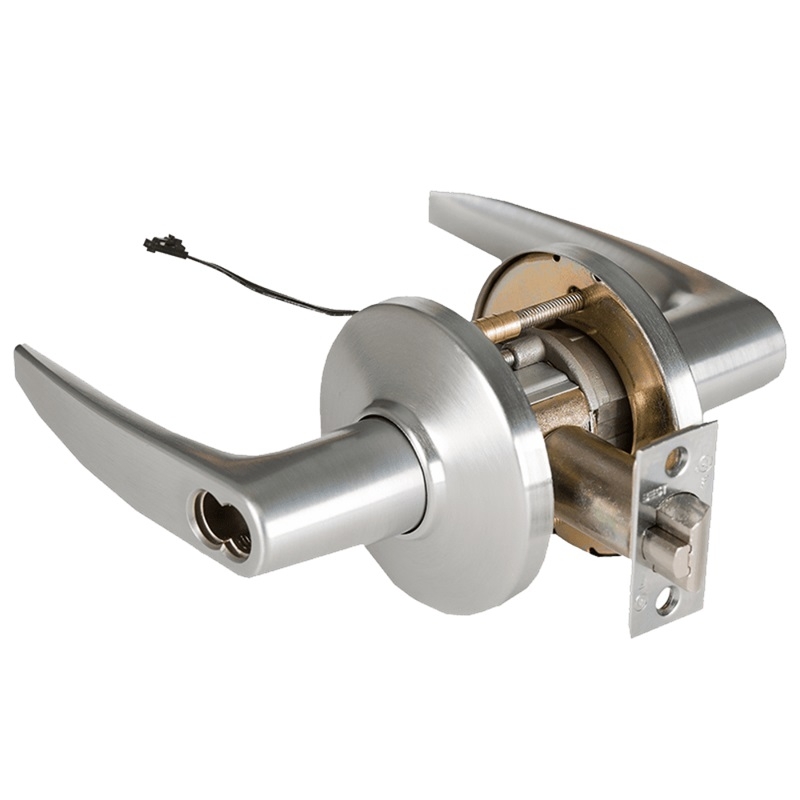

BEST 9KW37DEL Grade 1 Electrified Lever Lock 24DC - Fail Safe

BEST 9KW37DEL Electrified Lever Lock 24DC - Fail Safe

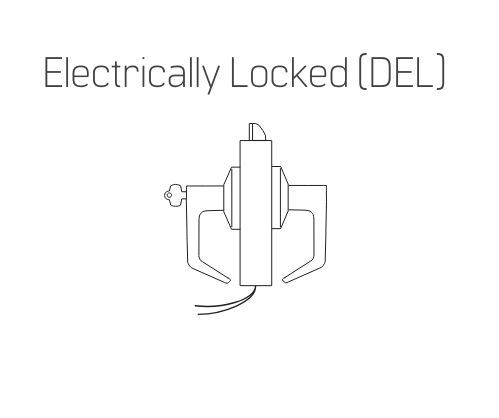

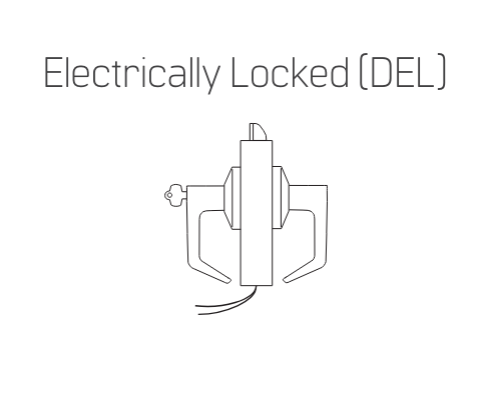

Function: DEL-Locked

Latch operated by: Rotating the inside knob/lever Rotating the outside knob/lever - only when power is off Turning the key in the outside knob/lever.

Outside Lever Locked by: Applying power to the solenoid; remains locked while power is on.

Outside Lever Unlocked by: Removing power from the solenoid

Inside Lever Locked by: Cannot be locked

Inside Lever Unlocked by: Always unlocked

Backset - 2 3/4" standard, 3 3/4" and 5" available.

Chassis - Critical latch and chassis components are brass or corrosion-treated steel. 2 1/16" diameter to fit 2 1/8" hole in door. (Conforms to ANSI A115.2) Door thickness - Available for 1 3/4" to 2 1/4" doors only. Spacers available for 1 3/8" doors.

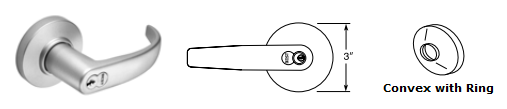

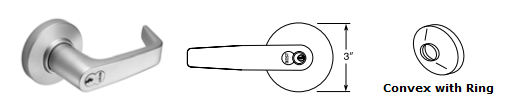

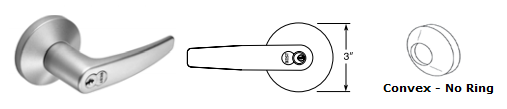

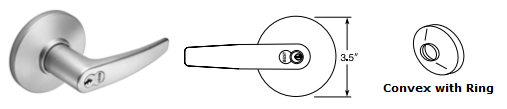

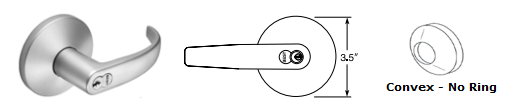

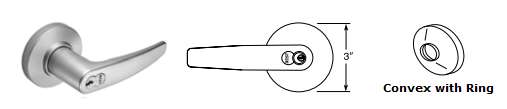

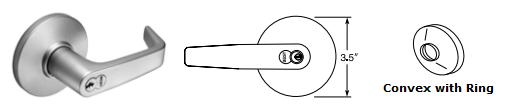

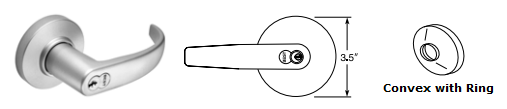

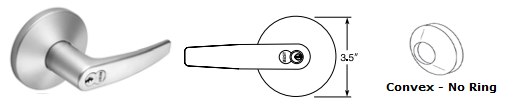

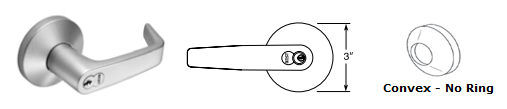

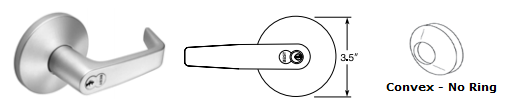

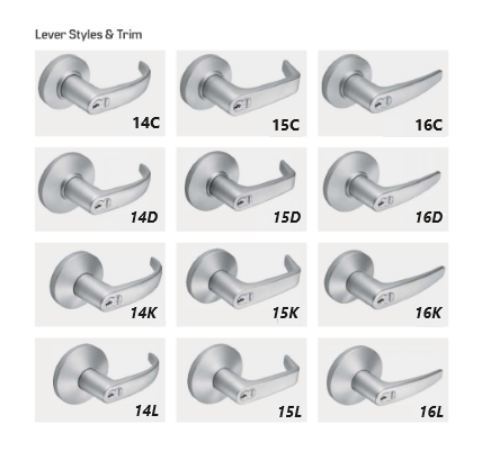

Roses - C - 3" Convex D - 3 1/2" Convex K - 3" Convex - no ring L - 3 1/2" Convex - no ring

Finish - 605 (US3) bright brass, 612 (US10) satin bronze, 613 (US10B) oxidized satin bronze, oil rubbed, 626 (US26D) satin chromium plated

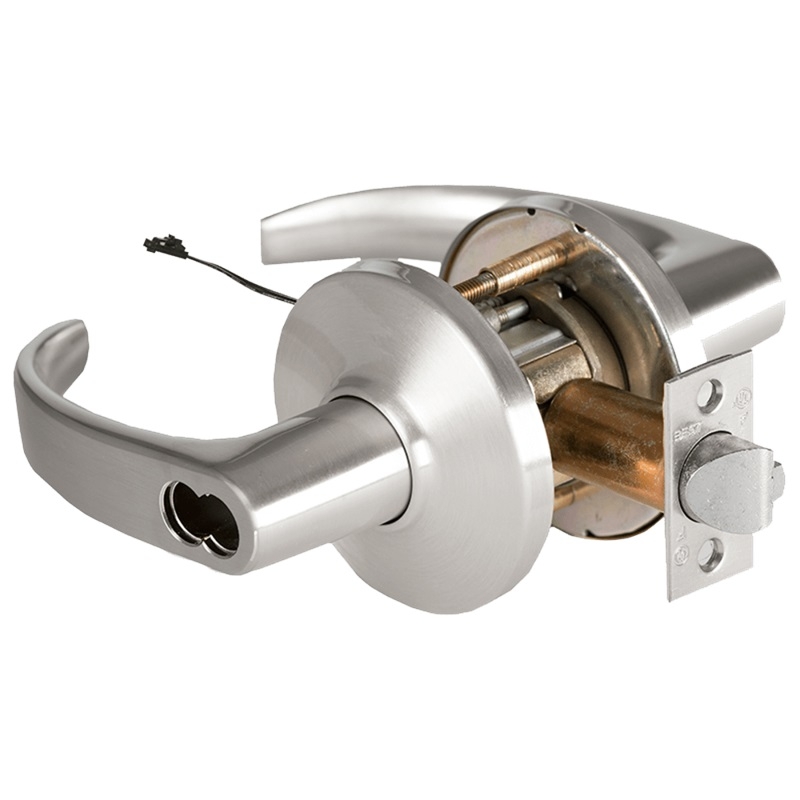

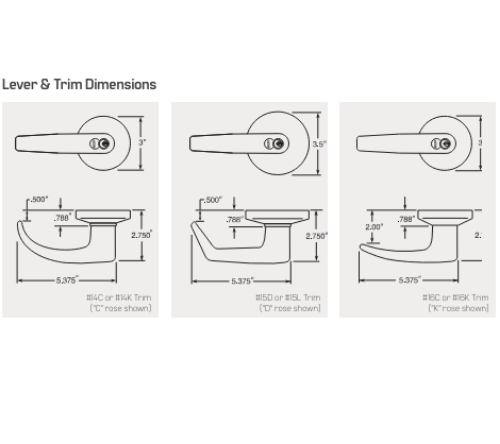

Lever handles - Lever handles are a high-quality zinc alloy. Trim components are brass or bronze. Body is approximately 5/8" in diameter; Handle is approximately 4 3/4" long (from center-line of chassis). #14 and #15 levers conform to California Administrative Code Title 19 and Title 24. All three styles of levers conform to the Illinois Accessibility Standard.

Mounting - In addition to standard door preparation (ANSI A115.2 for 1 3/4" doors), two additional holes are needed for through-bolts. Through-bolts require two 5/16" diameter holes located at 12 o'clock and 6 o'clock positions. A drill jig can be order ed to insure accuracy of the holes.

Projection on door - Approx. 2 3/4" when mounted on 1 3/4" door.

Strike - S3: Conforms to ANSI A115.2 for 1 3/4" doors (4 7/8" x 1 1/4" with curved lip).

Rose locking pin and rose assembly design offers great torque resistance. It prevents the locking pin from twisting, bending, or breaking under attack.The innovative design of the slotted key re lease cam and locking lug assembly create maximum attack resistance.Even though damaged, the lock still allows key access. In addition, the lever is fully functional from the inside. The hub-mounted torsion spring and strong retractor springs help prevent lever sag and offer a smooth and snappy operation.Strong through-bolt mounting studs increase torque resistance. Heavy rose liner material is highly attack resistant.Strong retractor springs provide resistance to lever sag.Zinc hubs with a shrouded locking lug, guaranteeing higher quality and increased torque resistance.The outside lever sleeve is a seamless one piece construction made of a hardened steel alloy that provides additional reinforcement in the locking lug slot.

Model: Best 9KW37DEL14DS3605 9KW37DEL14DS3605RQE, 9KW37DEL14DS3612, 9KW37DEL14DS3612RQE, 9KW37DEL14DS3613, 9KW37DEL14DS3613RQE, 9KW37DEL14DS3626, 9KW37DEL14DS3626RQE, 9KW37DEL15DS3605, 9KW37DEL15DS3605RQE, 9KW37DEL15DS3612 9KW37DEL15DS3612RQE, 9KW37DEL15DS3613, 9KW37DEL15DS3613RQE, 9KW37DEL15DS3626, 9KW37DEL15DS3626RQE, 9KW37DEL16DS3605, 9KW37DEL16DS3605RQE, 9KW37DEL16DS3612, 9KW37DEL16DS3612RQE, 9KW37DEL16DS3613, 9KW37DEL16DS3613RQE, 9KW37DEL16DS3626, 9KW37DEL16DS3626RQE, 9KW37DEL14CS3605 9KW37DEL14CS3605RQE, 9KW37DEL14CS3612, 9KW37DEL14CS3612RQE, 9KW37DEL14CS3613, 9KW37DEL14CS3613RQE, 9KW37DEL14CS3626, 9KW37DEL14CS3626RQE, 9KW37DEL15CS3605, 9KW37DEL15CS3605RQE, 9KW37DEL15CS3612 9KW37DEL15CS3612RQE, 9KW37DEL15CS3613, 9KW37DEL15CS3613RQE, 9KW37DEL15CS3626, 9KW37DEL15CS3626RQE, 9KW37DEL16CS3605, 9KW37DEL16CS3605RQE, 9KW37DEL16CS3612, 9KW37DEL16CS3612RQE, 9KW37DEL16CS3613, 9KW37DEL16CS3613RQE, 9KW37DEL16CS3626, 9KW37DEL16CS3626RQE, 9KW37DEL14KS3605 9KW37DEL14KS3605RQE, 9KW37DEL14KS3612, 9KW37DEL14KS3612RQE, 9KW37DEL14KS3613, 9KW37DEL14KS3613RQE, 9KW37DEL14KS3626, 9KW37DEL14KS3626RQE, 9KW37DEL15KS3605, 9KW37DEL15KS3605RQE, 9KW37DEL15KS3612 9KW37DEL15KS3612RQE, 9KW37DEL15KS3613, 9KW37DEL15KS3613RQE, 9KW37DEL15KS3626, 9KW37DEL15KS3626RQE, 9KW37DEL16KS3605, 9KW37DEL16KS3605RQE, 9KW37DEL16KS3612, 9KW37DEL16KS3612RQE, 9KW37DEL16KS3613, 9KW37DEL16KS3613RQE, 9KW37DEL16KS3626, 9KW37DEL16KS3626RQE, 9KW37DEL14LS3605 9KW37DEL14LS3605RQE, 9KW37DEL14LS3612, 9KW37DEL14LS3612RQE, 9KW37DEL14LS3613, 9KW37DEL14LS3613RQE, 9KW37DEL14LS3626, 9KW37DEL14LS3626RQE, 9KW37DEL15LS3605, 9KW37DEL15LS3605RQE, 9KW37DEL15LS3612 9KW37DEL15LS3612RQE, 9KW37DEL15LS3613, 9KW37DEL15LS3613RQE, 9KW37DEL15LS3626, 9KW37DEL15LS3626RQE, 9KW37DEL16LS3605, 9KW37DEL16LS3605RQE, 9KW37DEL16LS3612, 9KW37DEL16LS3612RQE, 9KW37DEL16LS3613, 9KW37DEL16LS3613RQE, 9KW37DEL16LS3626, 9KW37DEL16LS3626RQE

ADA Americans With Disabilities Act: 9K series:  The design and operation of the BEST cylindrical lock meets the intent of the standard for ANSI A117.1 section 404.2.6

Builders Hardware Manufacturers Association: 9K series  Listed by BHMA for A156.2, Series 4000, Grade 1.

Underwriters Laboratories : 9K series  Listed by Underwriters Laboratories for use on 3 Hr, A label for single or double swinging doors.

Florida Building Code and Miami-Dade County Code: 9K series  9/16" latch throw  Listed by Florida Building Code and Miami-Dade County at  75 PSF for single doors. 9K series  3/4" latch throw  Listed by Florida Building Code and Miami Dade County at  80 PSF for single doors and  50 PSF for double doors.

California State Fire Marshal: 9K series  Listed with California State Fire Marshal. 9K series 14 & 15 lever conforms with California Title 24.

Approval Listings: UL listed for GYQS Electrically-controlled single-point locks or latches.This product has been approved by the California State Fire Marshal (CSFM) pursuant to section 13144.1 of the California Health and Safety Code.Approved by the city of New York Board of Standards and Appeals under calendar number 730-89-SA. See CSFM listing No. 4136-1175:103. It is subject to re-examination, revision and possible cancellation.
