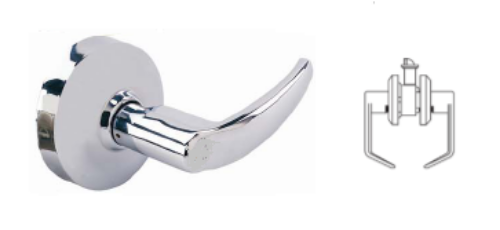

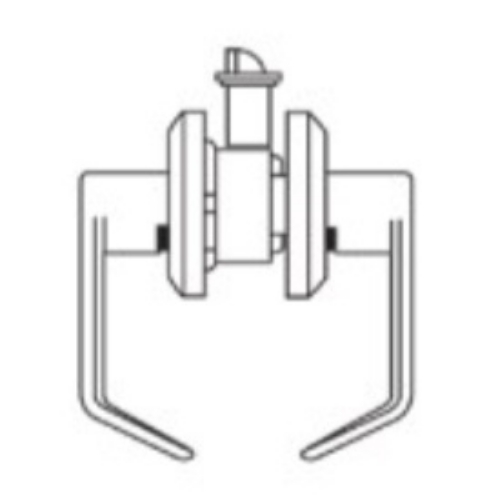

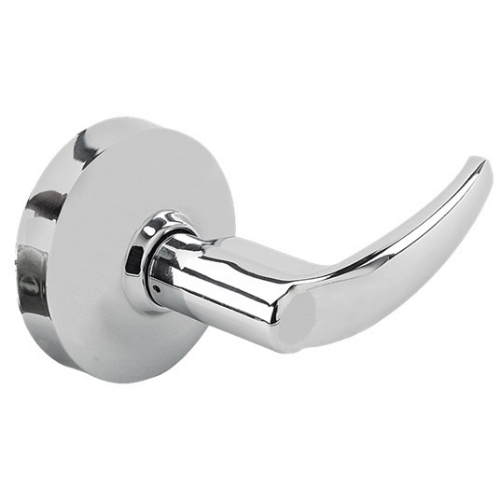

Cal-Royal AT30 Grade 1 Passage Lever Set

Product Details

Cal Royal AT30 Grade 1 Passage Lever Set- ANSI F75

Latch bolt operated by lever from either side at all times.

ANSI:A 156.2 Series 4000, grade 1.

Non-handed levers.

Backset:UL Listed 2 3/4" backset, 2 1/4" x 1 1/8" faceplate standard. 2-3/8" backset also available.

Strike:ASA - 4-7/8" x 1-1/4" Strike standard. 2-1/4" full lip or 2-3/4" x 1-1/8" T-strike also available.

Clutch:Featuring CLUTCH System, free turning handle to deter breaking of the handle.

Cal-Royal AT30 Grade 1 Passage Lever Set

Name: Cal-Royal AT30 Grade 1 Passage Lever Set
SKU: AT30
Price: 129.97 USD
Availability: InStock

SKU: AT30

In Stock

Chat

$129.97

About this item

Cal Royal security locksets for commercial, and institutional uses. Our door locksets have been used for over 20 years and have been used in house design and remodeling, school and health care security, and other commercial locking applications.

Resources

https://www.cal-royal.com/files/Catalog__110_G1_Locksets_Genesys_COMBINED.pdf

Cal Royal AT30 Grade 1 Passage Lever Set- ANSI F75

Latch bolt operated by lever from either side at all times.

ANSI:A 156.2 Series 4000, grade 1.

Non-handed levers.

Backset:UL Listed 2 3/4" backset, 2 1/4" x 1 1/8" faceplate standard. 2-3/8" backset also available.

Strike:ASA - 4-7/8" x 1-1/4" Strike standard. 2-1/4" full lip or 2-3/4" x 1-1/8" T-strike also available.

Clutch:Featuring CLUTCH System, free turning handle to deter breaking of the handle.

Cal-Royal AT30 Grade 1 Passage Lever Set

Product code: AT30

In Stock

$129.97

Housing:Cold rolled steel and zinc dechromate finish for rust resistance with precision cast steel retractor. 2-1/8" diameter bore. Trim: Thru-bolted assembly through door with separate spring cage for each lever. Matching design to SL Series Grade 2 levers.

Lever:Full length 4-3/4" lever handle with 3/8" return on GN and SPA Design.

Rose:Rose diameter 3-1/2".

Key removable outside lever for fast rekeying.

Concealed mounting screws.
