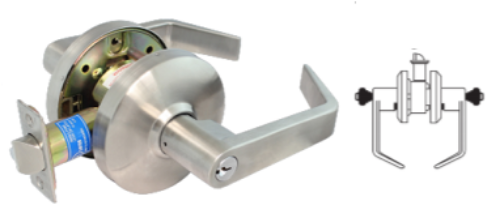

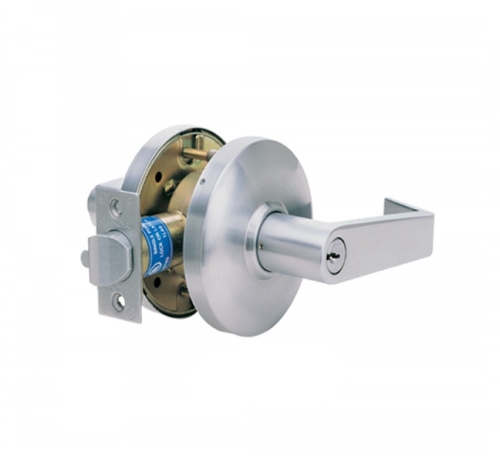

Cal-Royal CGN07 Grade 1 Classroom/Intruder Lock

Cal-Royal CGN07 Grade 1 Classroom/Intruder Lock

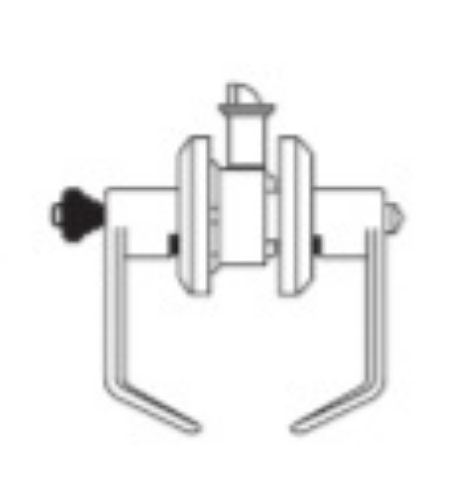

Latchbolt is operated by rotating the inside lever, or rotating the outside lever only when not locked from the inside or outside key. Outside lever is locked and unlocked by turning the key in the inside or outside lever. Inside lever cannot be locked.

ANSI: A 156.2 Series 4000, grade 1.

Non-handed levers.

Backset: UL Listed 2 3/4" backset, 2 1/4" x 1 1/8" faceplate standard. 2-3/8" backset also available.

Strike: ASA - 4-7/8" x 1-1/4" Strike standard. 2-1/4" full lip or 2-3/4" x 1-1/8" T-strike also available.

Clutch: Featuring CLUTCH System, free turning handle to deter breaking of the handle.

Cylinders & Keyways: 6 pin solid brass "C" keyway standard.

Housing: Cold rolled steel and zinc dechromate finish for rust resistance with precision cast steel retractor. 2-1/8" diameter bore.

Trim: Thru-bolted assembly through door with separate spring cage for each lever. Matching design to SL Series Grade 2 levers.

Lever: Full length 4-3/4" lever handle with 3/8" return on GN and SPA Design.

Rose: Rose diameter 3-1/2".

Key removable outside lever for fast rekeying.

Concealed mounting screws.
