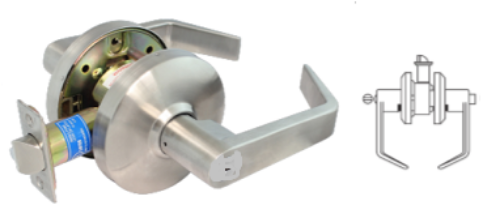

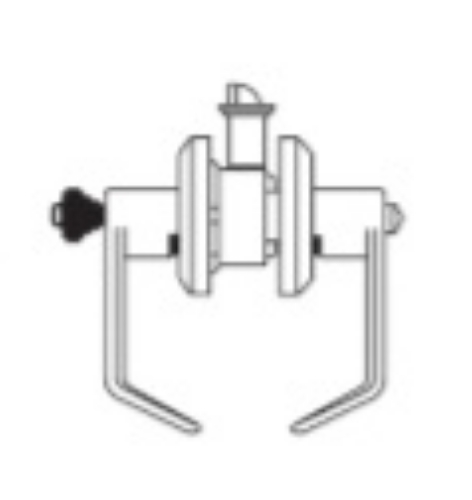

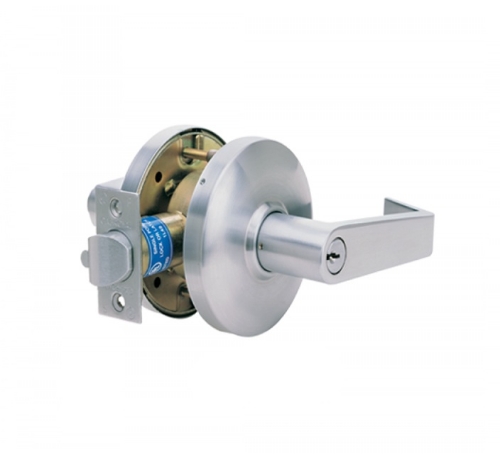

Cal-Royal CGN20 Grade 1 Privacy Lever Set

Cal-Royal CGN20 Grade 1 Privacy Lever Set

Latch bolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside. Turning inside lever or closing door release push button.

ANSI:A 156.2 Series 4000, grade 1.

Non-handed levers.

Backset:UL Listed 2 3/4" backset, 2 1/4" x 1 1/8" faceplate standard. 2-3/8" backset also available.

Strike: ASA - 4-7/8" x 1-1/4" Strike standard. 2-1/4" full lip or 2-3/4" x 1-1/8" T-strike also available.

Clutch:Featuring CLUTCH System, free turning handle to deter breaking of the handle.

Housing:Cold rolled steel and zinc dechromate finish for rust resistance with precision cast steel retractor. 2-1/8" diameter bore. Trim: Thru-bolted assembly through door with separate spring cage for each lever. Matching design to SL Series Grade 2 levers.

Lever:Full length 4-3/4" lever handle with 3/8" return on GN and SPA Design.

Rose:Rose diameter 3-1/2".

Key removable outside lever for fast rekeying.

Concealed mounting screws.
