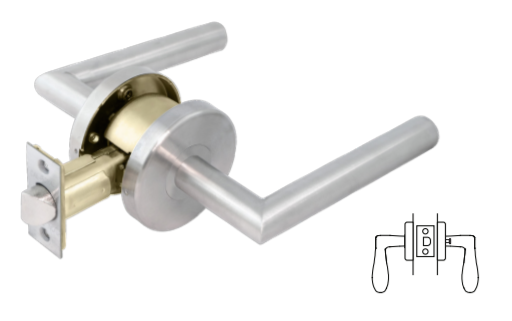

Cal-Royal ATH20 Grade 2, Privacy Lock

Cal-Royal ATH20 Grade 2, Privacy Lock - ANSI: F76

Function:*Privacy lock - Latch bolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside. Turning inside lever or closing door releases push button. *Backset - 2 3/4" or 2 3/8" backset Door Range - 1-3/8" to 1 3/4" thickness doors.

Latch Faceplate - 2 1/4" x 1 1/8" or 2 1/4" x 1", with plastic filler to convert 1" faceplate to 1 1/8" wide door preparations

Latchbolt- 1/2" Throw solid brass, UL listed. Latch and Stick Screws - 8-32 X 1" FPH dual purpose. Strike - T-Strike standard.

Exposed Trim:Stainless Steel or Zinc casting, plated to match trim finish.

Kick-off Feature On Privacy Function:Privacy function automatically unlocks if door is locked prior to closing

Ansi Standards:Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles

Model: Cal Royal ATH20, ATH20US32D, ATH20US32, ATH2010BE, ATH201,
