Precision CM150-08 Control Module For ELR Power Supply

Precision CM150-08 Control Module For ELR Power Supply

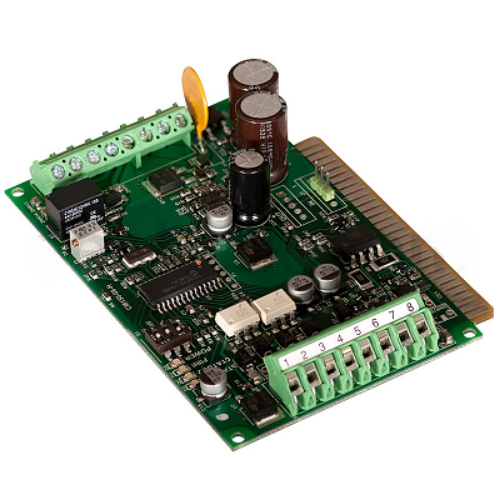

The CM150-08 Control Module is a card that is installed in the ELR150 Series Power Supply and controls one ELR device and includes a Time Delay Feature. The Time Delay provides a variable Latch Retraction period in response to a momentary input.

Specifications

Switch Input

• Normally open Voltage Input

• Input Voltage: 5-24VDC or VAC

• Input Current: approx. 0.005 Amp.

• Minimum pulse width: 0.25 seconds

Output

• Current Pulse: 4.75 Amp. (2 seconds max.)

• Continuous: 3.6 VDC / 0.8 Amp.

Time Delay

• User selectable: 0-4 minutes delay after input is removed

Fire Alarm Terminal

• Red LED (D3) blinks when Fire Alarm interrupts circuit

• Provides immediate termination of output

Switch Input:

• Accepts normally closed contacts or 5-24 Volts from a listed fire detecting device.

Voltage Input:

• Input Current: 0.005 Amp.

• Minimum pulse width: 0.25 seconds

Auxiliary Contacts

• Relay isolated contacts provided for remote signaling (e.g. door operator)

• Normally open or normally closed contacts are rated at 0.5 Amp., 24VDC or VAC

• Contact operation follows successful operation of the ELR device.
