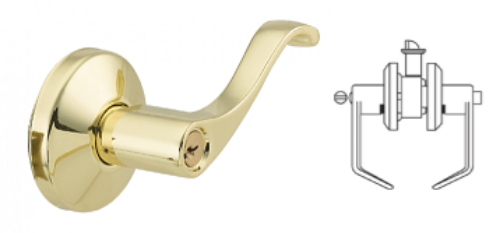

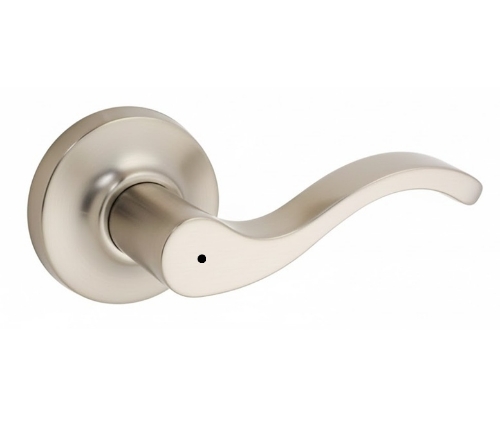

Cal-Royal AST20 Grade 2, Privacy Lock

Cal-Royal AST20 Grade 2, Privacy Lock - ANSI: F76

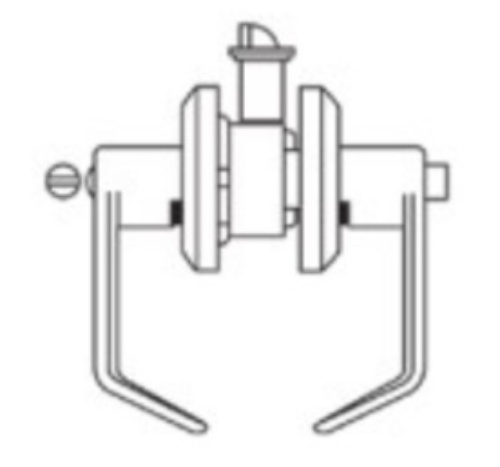

Latch bolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside. Turning inside lever or closing door release push button. Backset - 2-3/8" Standard Door Range - 1-3/8" to 2" thickness doors. Latchbolt - 1/2" Throw solid brass, reversible for RH or LH applications. UL listed. Latch and Stick Screws - 8-32 X 1" FPH dual purpose.   Latch Faseplate- 2 1/4" x 1", round corner

Strike- FLS Full Lip Strike 1'' x 2 1/4", 1/4" round corner (standard)

Model: Cal Royal AST20, AST2026D, AST3026, AST2010B, AST203, AST2015,

ANSI Standards - Meets or exceeds requirements of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim - Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
