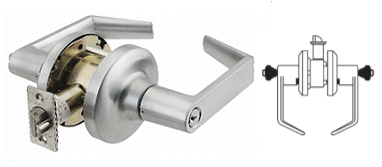

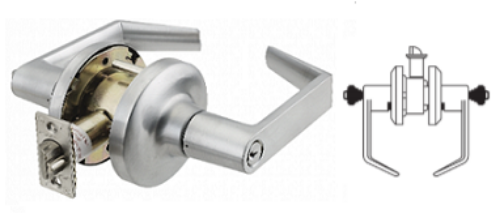

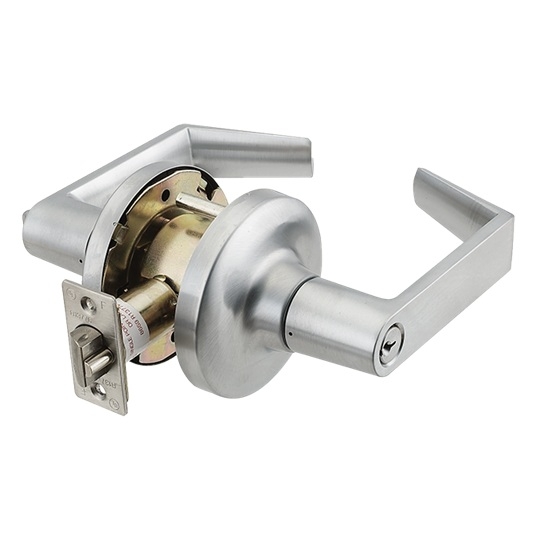

Cal-Royal CAL09 Grade 1, Institution Lock

Cal-Royal CAL09 Grade 1, Institution*Lock - ANSI F87*

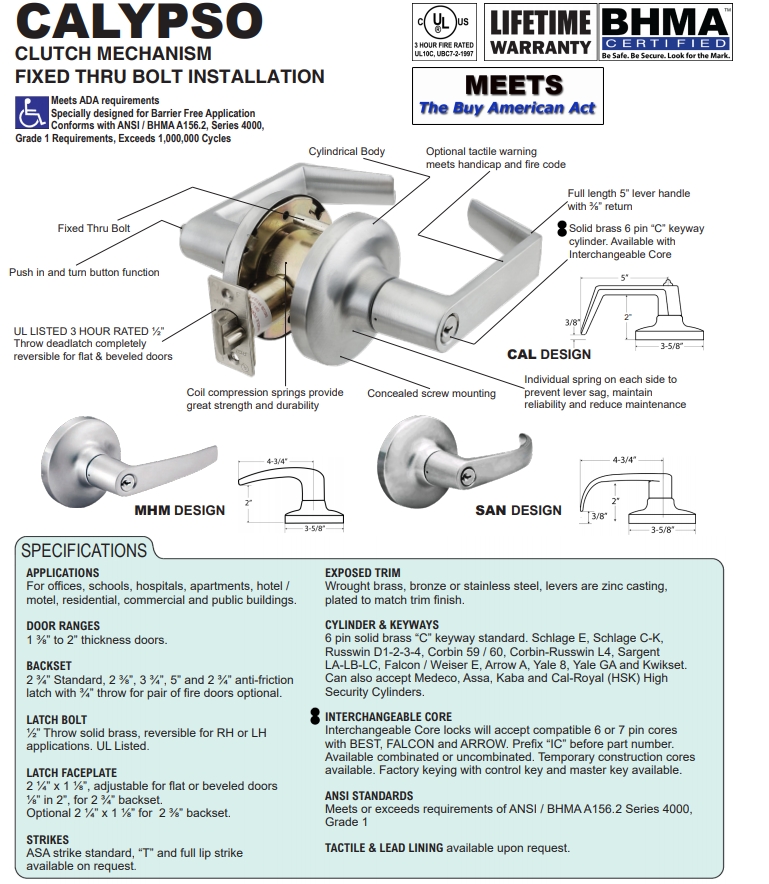

FUNCTIONS:Dead locking latch bolt operated by key in lever from either side. Both lever always fixed.

DOOR RANGES:1 3/8" to 2" thickness doors.

BACKSET:2 3/4" Standard, 2 ⅜", 3 3/4, 5" and 2 3/4" anti-friction latch with 3/4" throw for pair of fire doors optional.

LATCH BOLT: 1/2" Throw solid brass, reversible for RH or LH applications. UL Listed. LATCH FACEPLATE: 2 3/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2", for 2 3/4" backset. Optional 2 1/4" x 1 1/8" for 2 3/8" backset.

STRIKES ASA:strike standard, "T" and full lip strike available on request.

EXPOSED TRIM:Wrought brass, bronze or stainless steel, levers are zinc casting, plated to match trim finish.

CYLINDER & KEYWAYS:6 pin solid brass "C" keyway standard.

ANSI STANDARDS:Meets or exceeds requirements of ANSI / BHMA A156.2 Series 4000, Grade 1

TACTILE & LEAD LINING available upon request.
