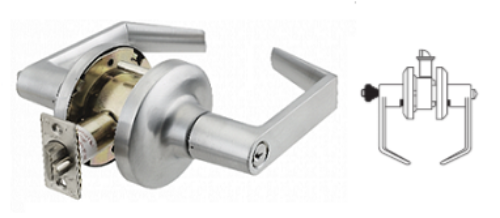

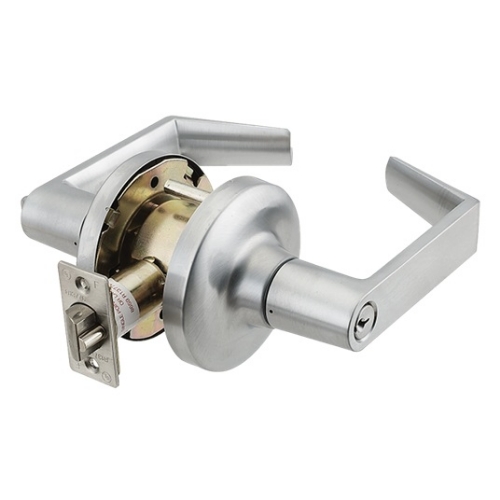

Cal-Royal CAL101 Grade 1, Dormitory Lock

Cal-Royal CAL101 Grade 1, Dormitory*Lock - ANSI F90*

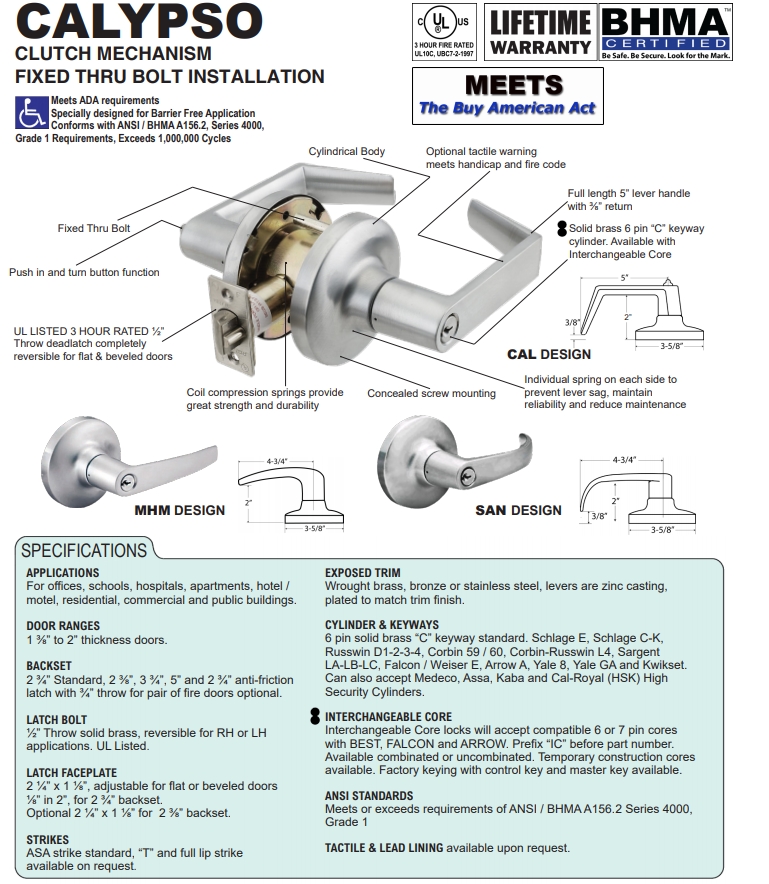

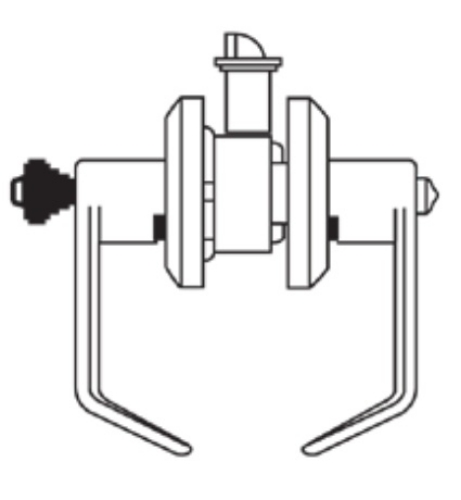

FUNCTIONS:Dead locking latch bolt operated by lever from either side except when outside lever is locked by key or by push button on inside lever. Key in outside lever locks or unlocks outside lever. Outside key releases push button when locked from inside. Rotating inside lever or closing the door releases push button.

DOOR RANGES:1 3/8" to 2" thickness doors.

BACKSET:2 3/4" Standard, 2 ⅜", 3 3/4, 5" and 2 3/4" anti-friction latch with 3/4" throw for pair of fire doors optional.

LATCH BOLT: 1/2" Throw solid brass, reversible for RH or LH applications. UL Listed. LATCH FACEPLATE: 2 3/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2", for 2 3/4" backset. Optional 2 1/4" x 1 1/8" for 2 3/8" backset.

STRIKES ASA:strike standard, "T" and full lip strike available on request.

EXPOSED TRIM:Wrought brass, bronze or stainless steel, levers are zinc casting, plated to match trim finish.

CYLINDER & KEYWAYS:6 pin solid brass "C" keyway standard.

ANSI STANDARDS:Meets or exceeds requirements of ANSI / BHMA A156.2 Series 4000, Grade 1

TACTILE & LEAD LINING available upon request.
