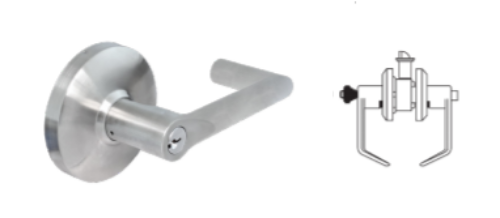

Cal-Royal CAUG101 Grade 1 Dormitory Lock

Cal-Royal AUG101 US26D Grade 1 Dormitory (Non-Clutch) Lock  -ANSIF90

Deadlocking latch bolt operated by lever from either side except when outside lever is locked by key or by push button on inside lever. Key in outside lever locks or unlocks outside lever. Outside key releases push button when locked from inside. Rotating inside lever or closing the door releases push button.

ANSI:A 156.2 Series 4000, grade 1.

Non-handed levers.

Backset:UL Listed 2 3/4" backset, 2 1/4" x 1 1/8" faceplate standard. 2-3/8" backset also available.

Strike:ASA - 4-7/8" x 1-1/4" Strike standard. 2-1/4" full lip or 2-3/4" x 1-1/8" T-strike also available.

Cylinders & Keyways:6 pin solid brass "C" keyway standard.

Housing:Cold rolled steel and zinc dechromate finish for rust resistance with precision cast steel retractor. 2-1/8" diameter bore. Trim: Thru-bolted assembly through door with separate spring cage for each lever. Matching design to SL Series Grade 2 levers.

Lever:Full length 4-3/4" lever handle with 3/8" return on GN and SPA Design.

Rose:Rose diameter 3-1/2".

Key removable outside lever for fast rekeying.

Concealed mounting screws.
