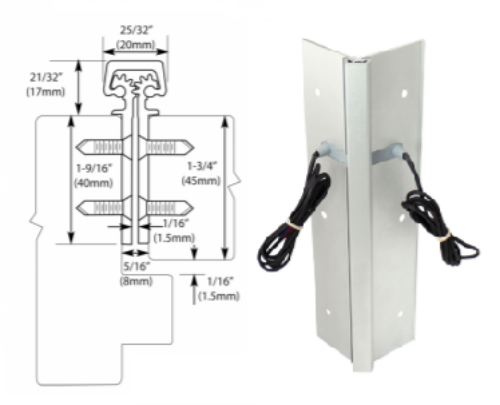

Cal-Royal CET8CRHD781120 Heavy Duty, Full Concealed Mortise, Geared Continuous Electrified Hinge.

Cal-Royal CET8CRHD781120 Heavy Duty, Full Concealed Mortise, Geared Continuous Electrified Hinge.

Heavy Duty for high frequency 1 3/4" doors or heavy medium frequency doors up to 450 lbs

No. Of Wires:8

Frame Reinforcement:None needed to 200lbs. Use 16 gauge channel over 200lbs.

Thickness of Hinge:5/16″

Screw Count:For Door 19 - For Jamb 19 Fasteners: Self-Tapping screws Full Mortise Hinges 1. All fasteners are No. 12-24 x 1/16" Type C, FHUC

Removable 12" Aluminum Gear Hinge. Can be removed for adjustment and service.

Single Door Clearance on Lock Side 1/8″

Cal-Royal continuous hinges are approved for use on swing type doors of hollow metal, tinclad, sheet-metal and steel covered composite type rated up to and including 3 hours. Wood composite doors rated up to and including 1 1/2 hours.

Model: Cal-Royal*ContinuousElectrified *Hinge, CET8CRHD781120 , CET8CRHD78 1120 , CET8CRHD78112095", CET8CRHD78112083"
