Roton 780-210 HD UL-FF 95" Full Surface Continuous Geared Hinge

Roton 780-210 HD UL-FF 95" Full Surface Continuous Geared Hinge - UL Fire Rated

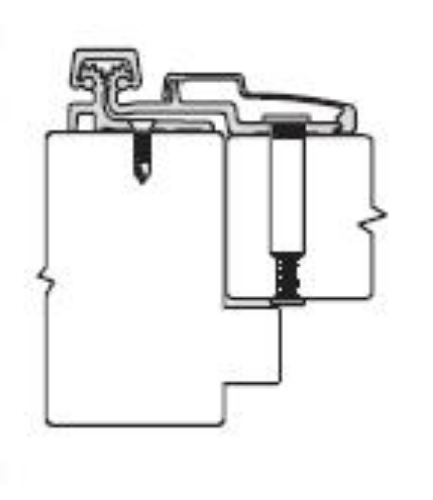

Full Surface - Retrofit  - Swing Clear Action -For Doors of any Material

HD:Heavy Duty for high frequency doors or heavy medium frequency doors.

UL:FIRE RATINGS - UNDERWRITERS LABORATORY FIRE RATING FILE #A14627

Hinge Length:95" (241.3 cm)

Door Screws:20

Jamb Screws:20

Clearance:

1/32" (1 mm) minimum recommended for hinge side plus standard lockside clearance. 15/8" (41 mm) minimum frame face required plus3/16" (5 mm) rotational clearanceFasteners:Dril-Kwik

screws and Sex boltsLength Options:Standard and Custom

Door Reinforcement:None required

Frame Reinforcement:None required to 200 lbs. Heavier weight use 16 gauge channel

Fire Rating:Up to 3 hr. metal and 90 min. wood composite (with studs)

Special Features:

Can be used with any door and frame material

Security molding

1/32" (1 mm) inset
