Roton 780-112 HD 83" Concealed Leaf Continuous Geared Hinge

Hager-780-112
Hager-780-112
naxt
prev

Product Details

Concealed Leaf - 1-3/4" Door - Templated -For Doors of any Material -

HD:Heavy Duty for high frequency doors or heavy medium frequency doors.

Hinge Length:83" (210.8 cm)Door Screws:19

Jamb Screws:19

Clearance:

5/16" (8 mm) hinge side plus standard lockside clearanceFasteners:Dril-Kwik

screwsLength Options:Standard and Custom

Door Reinforcement:None required to 200 lbs. Heavier weight use 16 gauge channel

Frame Reinforcement:None required to 200 lbs. Heavier weight use 16 gauge channel

Fire Rating:Up to 3 hr. metal and 90 min. wood composite (with studs)

Special Features:Frame and door leaf alignment ribs for proper hinge and door location

Roton 780-112 HD 83" Concealed Leaf Continuous Geared Hinge

SKU: 780112HD83

In Stock
Picture for manufacturer Hager
icon Chat

$137.61

Finish *

Model *

About this item

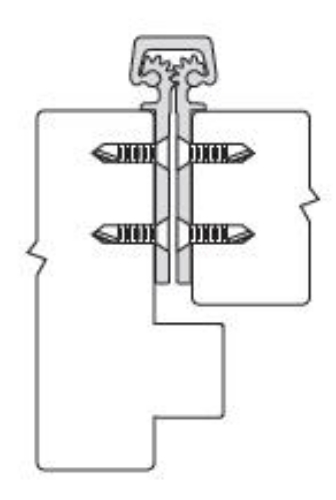

This model has leaves which are concealed between the rabbet of the frame and the hinge edge of the door.

Resources

No resources added to this product.

Concealed Leaf - 1-3/4" Door - Templated -For Doors of any Material -

HD:Heavy Duty for high frequency doors or heavy medium frequency doors.

Hinge Length:83" (210.8 cm)Door Screws:19

Jamb Screws:19

Clearance:

5/16" (8 mm) hinge side plus standard lockside clearanceFasteners:Dril-Kwik

screwsLength Options:Standard and Custom

Door Reinforcement:None required to 200 lbs. Heavier weight use 16 gauge channel

Frame Reinforcement:None required to 200 lbs. Heavier weight use 16 gauge channel

Fire Rating:Up to 3 hr. metal and 90 min. wood composite (with studs)

Special Features:Frame and door leaf alignment ribs for proper hinge and door location

Hager-780-112
Roton 780-112 HD 83" Concealed Leaf Continuous Geared Hinge

Product code: 780112HD83

In Stock

$225.59

$137.61

Hager-780-112
Roton 780-112 HD 83" Concealed Leaf Continuous Geared Hinge

Product code: 780112HD83

In Stock

$225.59

$137.61
