About this item

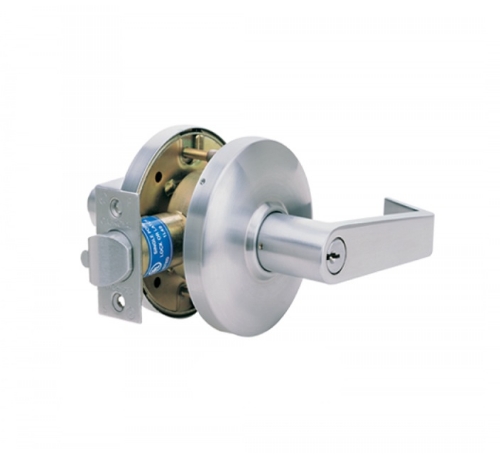

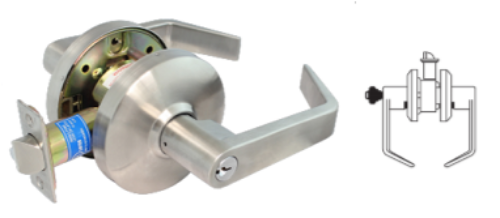

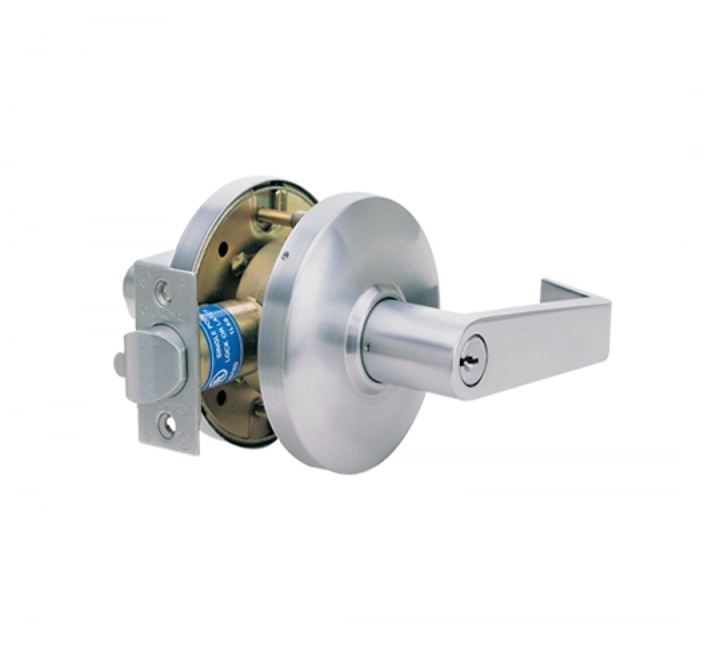

The Cal-Royal CGN05 is a Grade 1 commercial cylindrical storeroom lock from the Cal-Royal Genesys Series Grade 1 platform, the GN Lever Style family Cal-Royal built for high-traffic commercial and institutional openings: schools, healthcare facilities, multi-family buildings, government offices, and any commercial space that needs heavy-duty security at a value-engineered price below the major brands. The CGN05 carries ANSI function F86 (storeroom). The deadlocking latchbolt is operated by key from the outside lever or by rotating the inside lever for free egress. The outside lever is always fixed; it does not retract the latch by hand and cannot be unlocked by the inside push button or thumbturn. This is the standard institutional security function for storerooms, supply closets, server rooms, mechanical rooms, and any door that must always be locked from the outside. ANSI/BHMA A156.2 Series 4000 Grade 1 certified, UL Listed (2-3/4" backset). SKU CGN05. In stock.

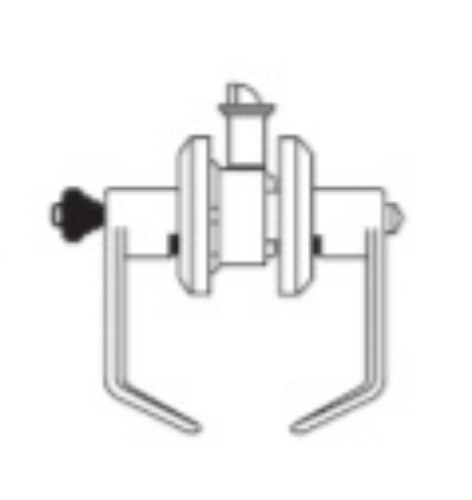

What ANSI F86 Storeroom Function Means
Storeroom (F86) is one of the most-specified ANSI functions on the commercial side because it is simple, secure, and code-compliant. Outside lever stays rigid until a key turns the cylinder. The key retracts the latch and the lever turns. Release the key, and the outside lever locks again automatically. The inside lever is always free, so anyone inside can exit without a key, which is what makes this an ANSI Grade 1 code-compliant function for occupied rooms. Use the CGN05 on supply closets and storage rooms, IT and server rooms, mechanical and electrical rooms, drug storage in healthcare facilities, evidence rooms, school equipment closets, and any commercial opening where every entry needs a key and every exit needs to be free.
Specifications
Function: ANSI F86 storeroom with deadlocking latchbolt, outside lever always fixed, inside lever always free for egress. Compliance: ANSI/BHMA A156.2 Series 4000 Grade 1, UL Listed at 2-3/4" backset. Backset: 2-3/4" standard (UL Listed); 2-3/8" available. Faceplate: 2-1/4" x 1-1/8" standard. Strike: ASA 4-7/8" x 1-1/4" standard; 2-1/4" full lip or 2-3/4" x 1-1/8" T-strike available. Bore: 2-1/8" cross-bore. Levers: non-handed, full-length 4-3/4" lever handle with 3/8" return on GN and SPA designs. Rose: 3-1/2" diameter. Housing: cold rolled steel with zinc dichromate finish for rust resistance, precision cast steel retractor. Trim: thru-bolted assembly through door with separate spring cage for each lever. Cylinder: 6-pin solid brass, "C" keyway standard. Levers and roses match the Cal-Royal SL Series Grade 2 design family. Concealed mounting screws. Key-removable outside lever for fast rekeying.
Why the CLUTCH System Matters
The Genesys series ships with Cal-Royal's CLUTCH free-turning handle system. When the outside lever is locked and someone tries to force it by hanging body weight on the handle or twisting hard, the CLUTCH allows the handle to spin freely instead of transferring force into the chassis. That single feature eliminates the most common failure mode for commercial cylindrical locks: snapped lever spindles and stripped chassis from vandalism. Combined with the key-removable outside lever (no need to disassemble the chassis to swap a damaged or rekeyed lever) and concealed mounting screws (no exposed Phillips heads for drill attacks), the CGN05 is built to survive abusive applications.
Configuration Options
Finish: 626 Satin Chrome (US26D). Backset: 2-3/4" standard (UL Listed) or 2-3/8". Strike: 4-7/8" ANSI standard or 2-3/4" T-strike. Keying: Standard Keyed Different (KD), Keyed Alike (KA), or Master Keyed (MK). For facilities standardizing on Small Format Interchangeable Core, see the Cal-Royal ICCGN05 Storeroom Lock sister SKU that accepts SFIC.

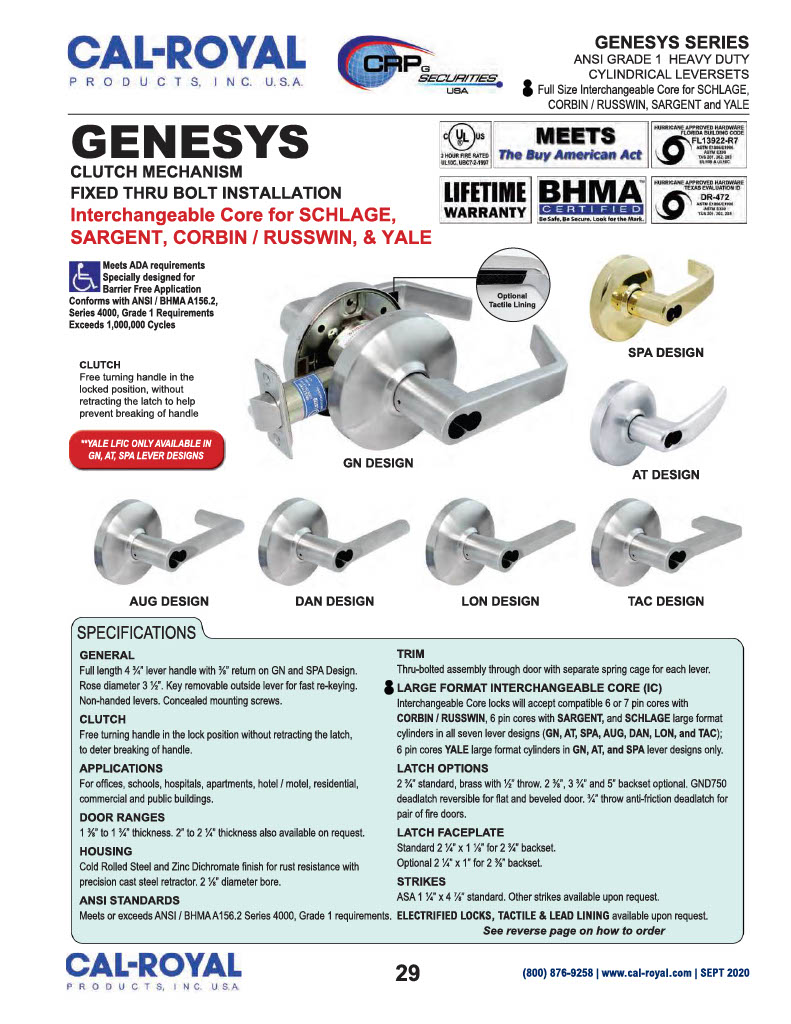

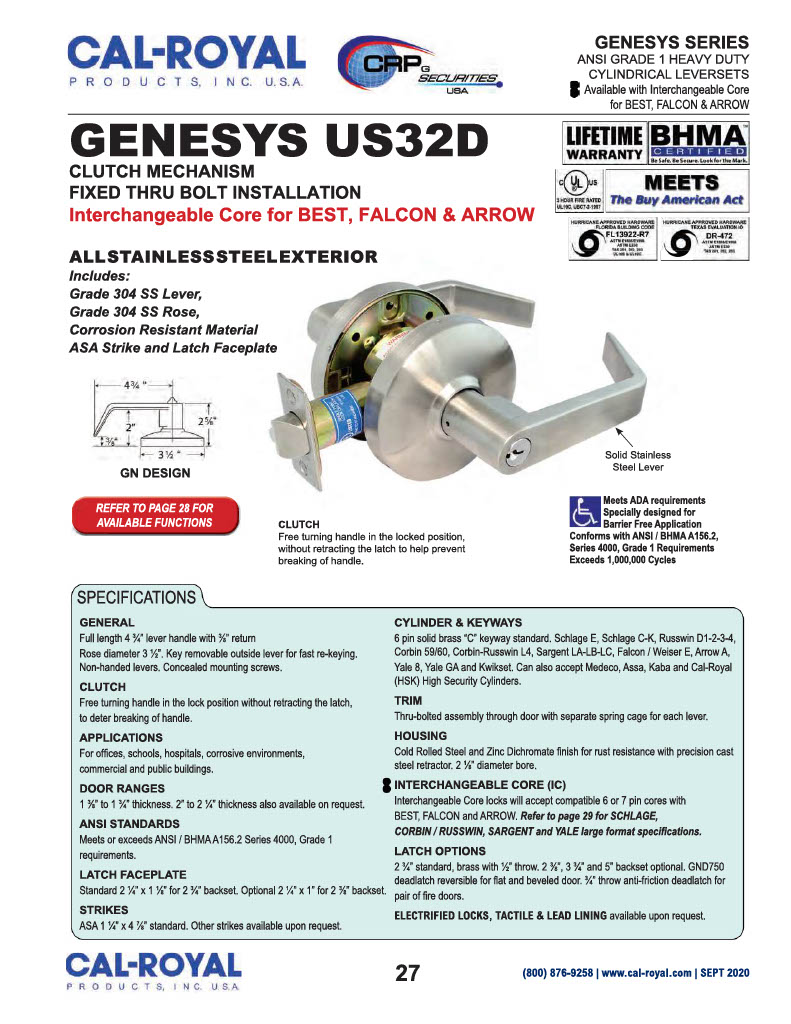

Where the CGN05 Sits in the Cal-Royal Genesys Family
The Genesys Grade 1 platform covers every common ANSI function. The CGN05 is the storeroom function. Sister SKUs in the same family on the same chassis: Cal-Royal CGN00 Entrance/Office Lock for keyed entry with always-free egress, Cal-Royal GN02 Store Lock for retail and commercial entry, Cal-Royal CGN03 Classroom Lock for traditional classroom keyed-from-outside function, Cal-Royal CGN04 Communicating Lock for hospital and dual-room applications, Cal-Royal CGN06 Vestibule Lock for entry vestibules, Cal-Royal CGN07 Classroom Intruder Lock for active-shooter classroom security, Cal-Royal CGN20 Privacy Lever Set for restroom and bedroom privacy, Cal-Royal GN30 Passage Lever Set for non-locking passage, and Cal-Royal GN40 Dummy Lever for inactive doors.
Where This Sits in the Site Catalog
The CGN05 lives in the Cal-Royal Genesys Series Grade 1 under Cal Royal Lever Locks within Cylindrical Lever Locks in the Commercial Locks catalog.
