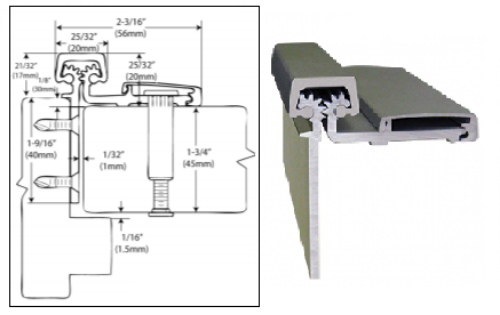

Cal-Royal CRHD780530 Heavy Duty, Full Surface, Geared Continuous Hinge.

Cal-Royal*CRHD780530*Heavy Duty, Full Surface, Geared Continuous Hinge.

Heavy Duty for high frequency 1 3/4" doors or heavy medium frequency doors up to 450 lbs

Clearance:5/32" (4mm) minimum recommended hinge side plus standard lockside clearance

Screw Count: For 83" Door 8 - For Jamb 9 -For 95"Door 19 - For Jamb 19

Fasteners: Self-Tapping screws -Frame Portion: All fasteners are No. 12-24 x 1 1/6 Type C, FHUC -Door*Portion: a)Thrubolt 1/4 -20 x 1 5/8" PCHb)Shoulder bolt 1/4 -20 x 1" PCH c)Pan Head Self Drilling No. 12 x 3/4" *Frame Reinforcement: None needed to 200lbs. Use 16 gauge channel over 200lbs.

Single Door Clearance on Lock Side 1/8″

Cal-Royal continuous hinges are approved for use on swing type doors of hollow metal, tinclad, sheet-metal and steel covered composite type rated up to and including 3 hours. Wood composite doors rated up to and including 1 1/2 hours.

Model: Cal-Royal Continuous  Hinge, CRHD780530, CRHD78 0530 , CRHD780530 95", CRHD780530 83",
