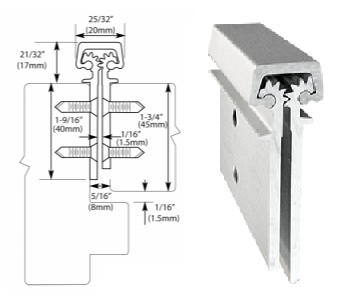

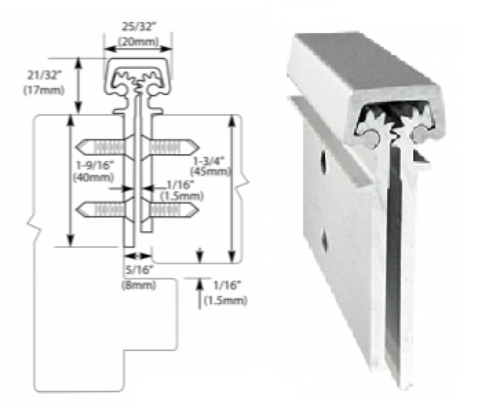

Cal-Royal CRHD781110 Heavy Duty, Full Concealed Mortise, Geared Continuous Hinge.

Cal-Royal CRHD781110 Heavy Duty, Full Concealed Mortise, Geared Continuous Hinge.

Heavy Duty for high frequency 1 3/4" doors or heavy medium frequency doors up to 450 lbs

Frame Reinforcement:None needed to 200lbs. Use 16 gauge channel over 200lbs.

Thickness of Hinge:5/16″

Screw Count:For Door 19 - For Jamb 19 Fasteners: Self-Tapping screws Full Mortise Hinges 1. All fasteners are No. 12-24 x 1/16" Type C, FHUC

Single Door Clearance on Lock Side 1/8″

Cal-Royal continuous hinges are approved for use on swing type doors of hollow metal, tinclad, sheet-metal and steel covered composite type rated up to and including 3 hours. Wood composite doors rated up to and including 1 1/2 hours.

Model: Cal-Royal**Continuous Hinge, CRHD78 1110, CRHD781110, CRHD781110 95", CRHD781110 83",
