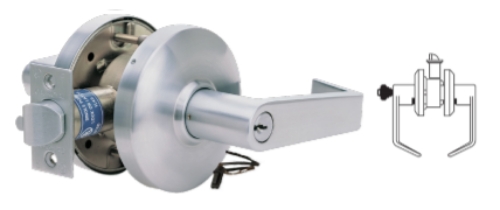

Cal-Royal ECGN05 - Heavy Duty Storeroom Electrified Lever Lock

Cal-Royal ECGN05 Grade 1, Storeroom Electrified Lock  - ANSI F86

Function - available "Fail Safe" (SAF) or "Fail Secure" (SEC)

Fail Safe- Outside lever continuously locked electrically, Unlocked by key outside or by switch or power failure, Auxiliary latch deadlocks latchbolt when door is closed, Inside lever always free for immediate exit.

Fail Secure -Outside lever continuously locked until unlocked by key or electric current, Auxiliary latch deadlocks latchbolt when door is closed, Inside lever always free for immediate exit.

ANSI: A 156.2 Series 4000, grade 1.

Non-handed levers.

Backset: UL Listed 2 3/4" backset, 2 1/4" x 1 1/8" faceplate standard. 2-3/8" backset also available.

Strike: ASA - 4-7/8" x 1-1/4" Strike standard. 2-1/4" full lip or 2-3/4" x 1-1/8" T-strike also available.

Clutch: Featuring CLUTCH System, free turning handle to deter breaking of the handle.

Cylinders & Keyways: 6 pin solid brass "C" keyway standard.

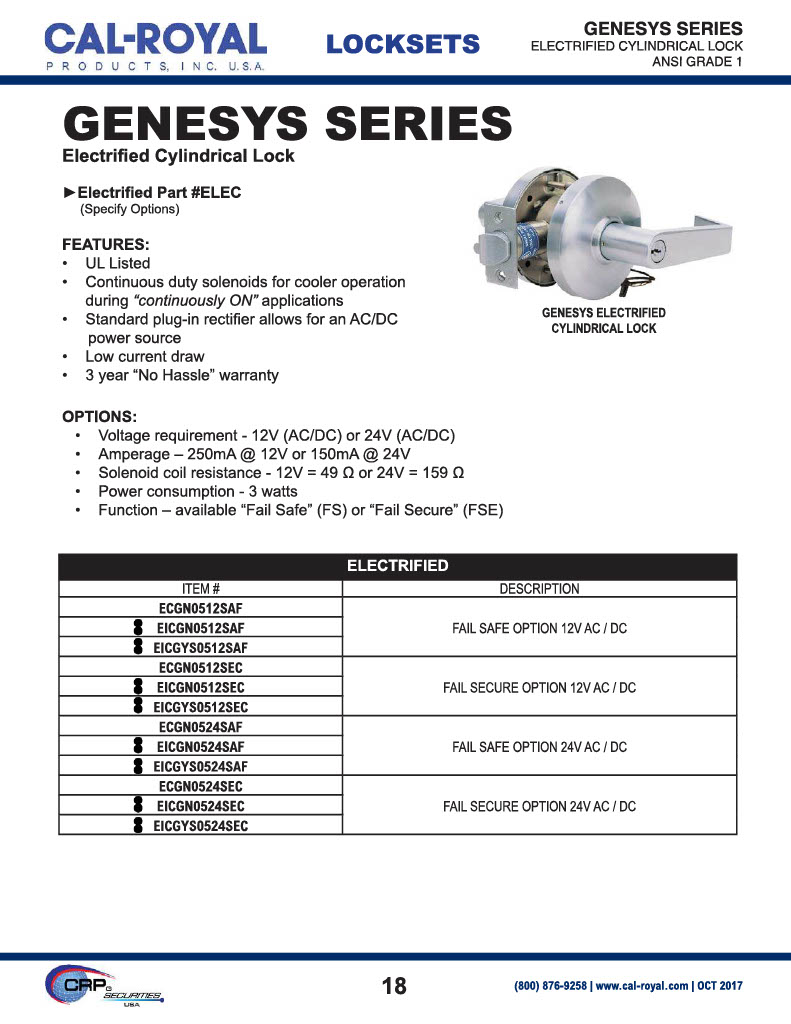

UL Listed

Continuous duty solenoids for cooler operation during "continuously ON" applications

Standard plug-in rectifier allows for an AC / DC power source

Low current draw

3 year "No Hassle" warranty

Voltage requirement - 12V or 24V (AC / DC)

Amperage - 250mA @ 12V or 150mA @ 24V

Solenoid coil resistance - 12V = 49 Ω or 24V = 159 Ω

Power consumption - 3 watts

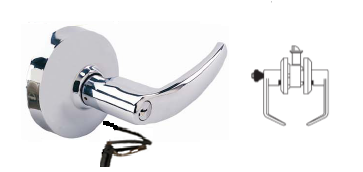

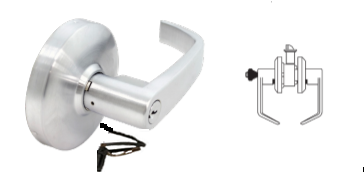

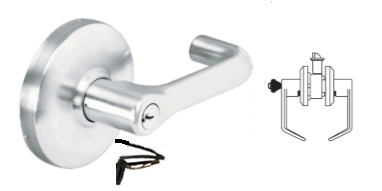

Model:Cal-Royal ECGN05, ECGN05US26D, ECGN0512, ECGN0524, ECGN05SAF, ECGN05SEC, ECGN0512SAF, ECGN0512SEC, ECGN0524SAF, ECGN0524SEC, ECAT05, ECAT05US26D,  ECAT0512, ECAT0524, ECAT05SAF, ECAT05SEC, ECAT0512SAF, ECAT0512SEC, ECAT0524SAF, ECAT0524SEC, ECSPA05, ECSPA05US26D, ECSPA0512, ECSPA0524, ECSPA05SAF, ECSPA05SEC, ECSPA0512SAF, ECSPA0512SEC, ECSPA0524SAF,ECSPA0524SEC, ECTUB05, ECTUB05US26D, ECTUB0512, ECTUB0524, ECTUB05SAF, ECTUB05SEC, ECTUB0512SAF, ECTUB0512SEC, ECTUB0524SAF, ECTUB0524SEC,

Housing: Cold rolled steel and zinc dechromate finish for rust resistance with precision cast steel retractor. 2-1/8" diameter bore. Trim:  Thru-bolted assembly through door with separate spring cage for each lever. Matching design to SL Series Grade 2 levers.

Lever: Full length 4-3/4" lever handle with 3/8" return on GN and SPA Design.

Rose: Rose diameter 3-1/2".

Key removable outside lever for fast rekeying.

Concealed mounting screws.
