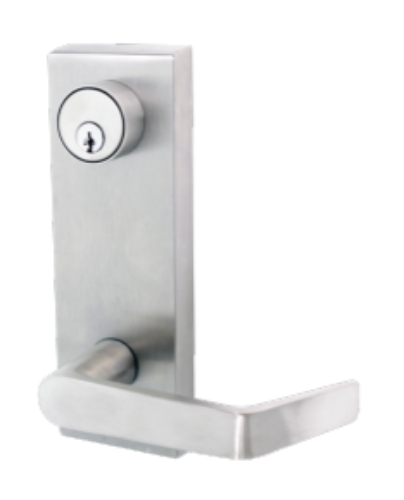

Cal-Royal ESC3305 Storeroom Exit Device Escutcheon Lever Trim - Stainless Steel

About this item

Cal-Royal ESC3305 Storeroom Exit Device Escutcheon Lever Trim - Stainless Steel

Clutch Storeroom, key unlocks lever, lever retracts latch bolt, otherwise always locked. ANSI FUNCTION (09)

Non-Ferrous Alloy Material

Clutch Mechanism

Double Heavy Duty Spring Support to prevent sagging and enhance operation

Grade 1, Thru-Bolted design. Non-Handed design.

Easily field reversible

Includes Adjustable Heavy Duty Steel Spindle.

Available for Fire and Non-Fire Rated Rim and Vertical Rod Exit Devices

Door Thickness: Standard 1 3/4" to 2 1/4". Use Adjustable Spindle for 1 3/4", 2, 2 1/4" door thickness.

Escutcheon dimensions: 2 5/8" width x 8 1/16" length. Lever length: 4 5/8". Fits and covers 2 1/8" 161 cutout

Keyway: 6-Pin solid brass "C" keyway Mortise Cylinder standard. Optional: Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Sargent LA-LB-LC, Falcon/Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal HSK High Security Cylinders.

(IC) Interchangeable Core: Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

(ICSC) Interchangeable Core: Indicates function available with Schlage Full size format Interchangeable Core.
