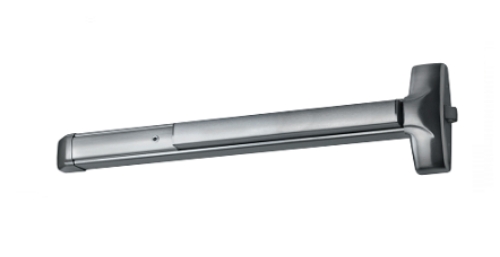

Detex 1003WS 630 99 36 Advantex Wide Stile Rim Exit Device, with Night Latch Trim, Satin Stainless Steel Finish, 36" Device

Detex 1003WS 630 99 36 Advantex Wide Stile Rim Exit Device, with Night Latch Trim, Hex Dogging, 99 Surface Strike, 36 In. - Satin Stainless Steel

Benefits

- Tough and durable design for years of trouble-free service in high-use, high-abuse environments

- Fast and accurate installation

- Minimal door prep saves time and money

- Outside trims are easily changed or re-keyed without removing device from door

Features

- Patented mounting plate and strike locator system replaces paper templates

- Stainless steel deadlocking, Pullman-type latch bolt

- Tested beyond 1,000,000 cycles - Twice the cycling required for Grade 1 UL testing

- All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process

- Heavy-duty angled end-cap deflects damage away from device

- Non-handed

- Field sizeable

- 1/8 turn hex or cylinder dogging

Mechanical Options

- CD - Cylinder Dogging

- HD - Hex Dogging (Std.)

- 99 - Surface Strike (Std.)

- 36 - Fits 36" Door Width (Std.)

Accessories

- Trim FunctionsSee Below

Technical Information

- Door Types - Wood, Hollow Metal, Fiberglass or Aluminum

- Door Thickness - Fits standard 1-3/4" - 2-1/4" doors (for other door thicknesses contact factory)

- Minimum Stile - 4-5/8" with standard 99 strike; 4-1/8" with optional 98 strike

- Fasteners - Machine and Self- Drilling Screws standard

Finish

630 / US32D Brushed Stainless Steel

Detex Limited Warranty

10 Year Mechanical/3 year Electrical Limited Manufacturer’s Warranty

Model:Detex 1003WSHD 630 99 36 , 1003WSHD- 630-99-36, 1003WS HD 630 99 36, 1003WS-HD 630 99 36, 1003WSHD6309936

Listings And Approvals

UL Listed Panic Hardware

UL Listed Fire Exit Hardware for 3 hours, maximum 4’x10’ single doors and pairs of 4’x8’ with F90KR keyed removable mullion

Meets ADA requirements

UBC 97, Standard 7-2 and UL10B/UL10C for positive pressure

ANSI/BHMA certified A156.3

Meets NFPA 80 & 101 for Life Safety

California State Fire Marshall 4140-0127:105 and 3725-0127:108

Miami-Dade County, Florida NOA 15-0415.08

State of Florida Approval FL9052
