Cal Royal Lever Locks
Cal-Royal Genesys Series - Grade 1
AUG Lever Style

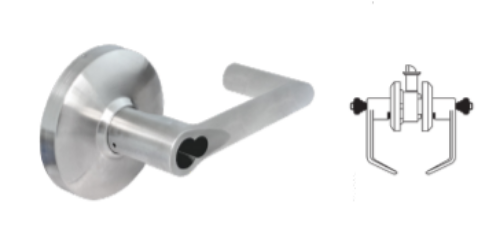

Cal-Royal ICAUG02 Grade 1 Store Lock - Accepts SFIC Core

Cal-Royal ICAUG02 Grade 1 Store Lock - Accepts SFIC Core

Product Details

Cal-Royal ICAUG02 Grade 1, Store Lock (Non Clutch) - Accepts Small-format Interchangeable Core (SFIC) (core not included)*- ANSI F91 *

Deadlocking latch bolt operated by lever from either side, except when both levers are locked by key in lever from either side. (Non Clutch) ANSI: A 156.2 Series 4000, grade 1.

Non-handed levers.

Backset:UL Listed 2 3/4" backset, 2 1/4" x 1 1/8" faceplate standard. 2-3/8" backset also available.

Strike:ASA - 4-7/8" x 1-1/4" Strike standard. 2-1/4" full lip or 2-3/4" x 1-1/8" T-strike also available.

Interchangeable core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

Cal-Royal ICAUG02 Grade 1 Store Lock - Accepts SFIC Core

Name: Cal-Royal ICAUG02 Grade 1 Store Lock - Accepts SFIC Core
SKU: ICAUG02
Price: 393.35 USD
Availability: InStock

SKU: ICAUG02

In Stock

Chat

$393.35

$466.20

You saved $72.85

About this item

Cal-Royal security locksets for commercial, and institutional uses. Our door locksets have been used for over 20 years and have been used in house design and remodeling, school and health care security, and other commercial locking applications.

Resources

https://www.cal-royal.com/files/Catalog__110_G1_Locksets_Genesys_COMBINED.pdf

Cal-Royal ICAUG02 Grade 1, Store Lock (Non Clutch) - Accepts Small-format Interchangeable Core (SFIC) (core not included)*- ANSI F91 *

Deadlocking latch bolt operated by lever from either side, except when both levers are locked by key in lever from either side. (Non Clutch) ANSI: A 156.2 Series 4000, grade 1.

Non-handed levers.

Backset:UL Listed 2 3/4" backset, 2 1/4" x 1 1/8" faceplate standard. 2-3/8" backset also available.

Strike:ASA - 4-7/8" x 1-1/4" Strike standard. 2-1/4" full lip or 2-3/4" x 1-1/8" T-strike also available.

Interchangeable core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

Cal-Royal ICAUG02 Grade 1 Store Lock - Accepts SFIC Core

Product code: ICAUG02

In Stock

$466.20

$393.35

Housing:Cold rolled steel and zinc dechromate finish for rust resistance with precision cast steel retractor. 2-1/8" diameter bore. Trim: Thru-bolted assembly through door with separate spring cage for each lever. Matching design to SL Series Grade 2 levers.

Lever:Full length 4-3/4" lever handle with 3/8" return on GN and SPA Design.

Rose:Rose diameter 3-1/2".

Key removable outside lever for fast rekeying.

Concealed mounting screws.
