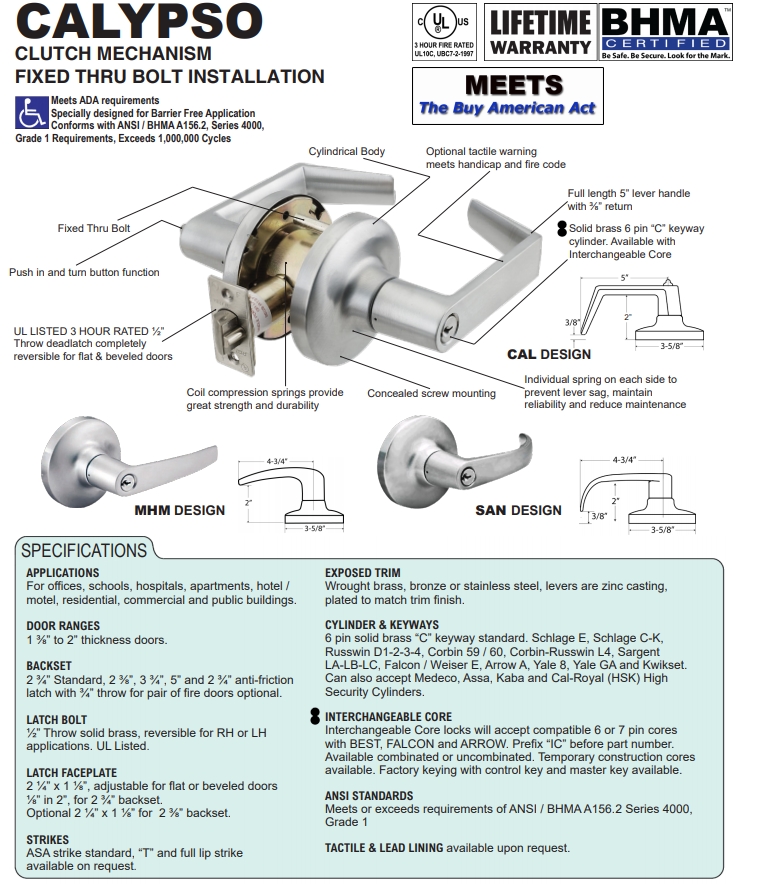

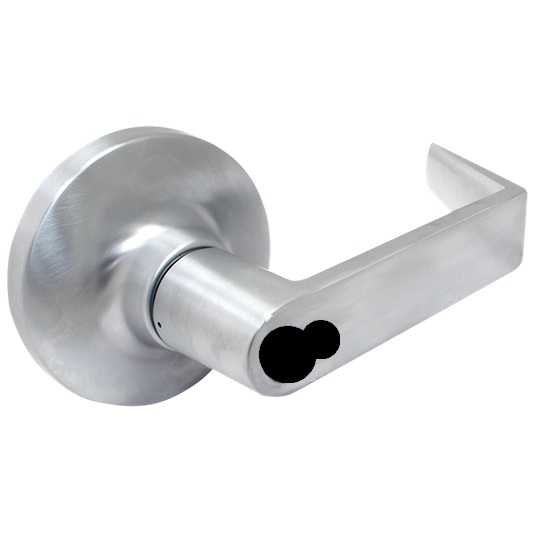

Cal-Royal ICCAL101 US26D Grade 1, Dormitory Lock - Accepts SFIC Core, Satin Chrome

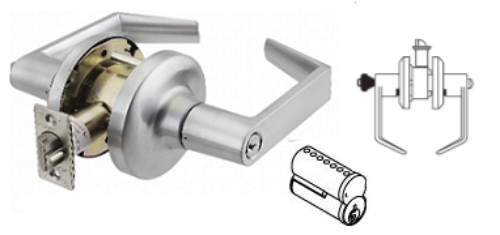

Cal-Royal ICCAL101 US26D Grade 1, Dormitory Lock  -Accepts Small-format Interchangeable Core (SFIC) (core not included) - Satin Chrome

ANSI F90

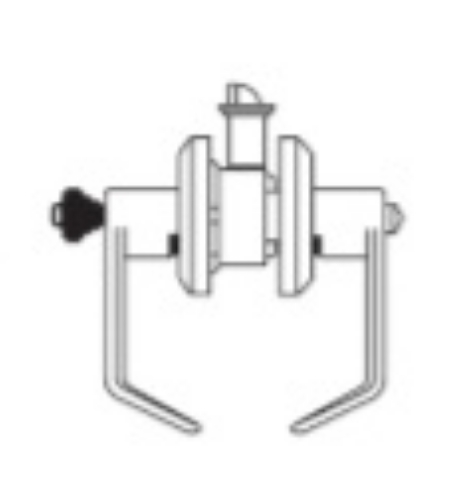

FUNCTIONS: Dead locking latch bolt operated by lever from either side except when outside lever is locked by key or by push button on inside lever. Key in outside lever locks or unlocks outside lever. Outside key releases push button when locked from inside. Rotating inside lever or closing the door releases push button.

DOOR RANGES: 1 3/8" to 2" thickness doors.

BACKSET: 2 3/4" Standard, 2 ⅜", 3 3/4, 5" and 2 3/4" anti-friction latch with 3/4" throw for pair of fire doors optional.

LATCH BOLT: 1/2" Throw solid brass, reversible for RH or LH applications. UL Listed.

LATCH FACEPLATE: 2 3/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2", for 2 3/4" backset. Optional 2 1/4" x 1 1/8" for 2 3/8" backset.

STRIKES ASA: Strike standard, "T" and full lip strike available on request.

EXPOSED TRIM: Wrought brass, bronze or stainless steel, levers are zinc casting, plated to match trim finish.

INTERCHANGEABLE CORE: Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

ANSI STANDARDS: Meets or exceeds requirements of ANSI / BHMA A156.2 Series 4000, Grade 1

TACTILE & LEAD LINING available upon request.
