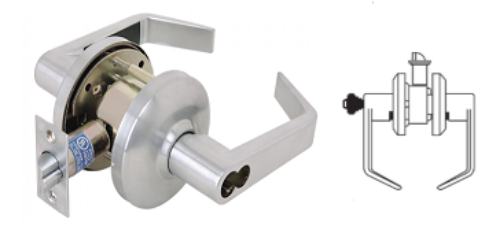

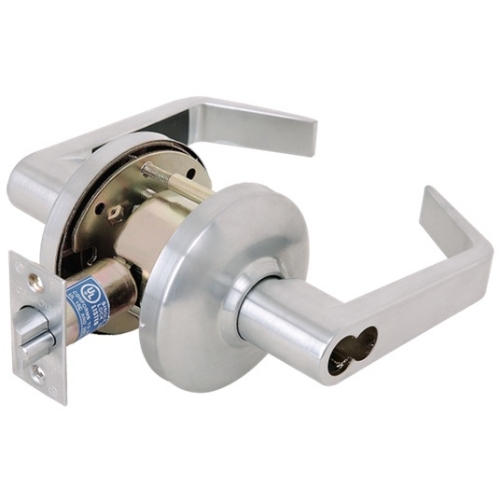

Cal-Royal ICCOM03 US26D Grade 2, Classroom Lock, Satin Chrome - Accepts Schlage LFIC Core

Cal-Royal ICCOM03 US26D Grade 2, Classroom Lock, Satin Chrome - Accepts Schlage Large-format Interchangeable Core (LFIC) (core not included) - With Clutch

ANSI F86

Dead locking latch bolt operated by lever from either side except when outside lever is locked from outside by key. When outside lever is locked, latch bolt is operated by turning inside lever.

DOOR RANGES: 1 3/8" to 1 3/4" thickness doors.

BACKSET: 2 3/4" Standard, 2 3/8", 3 3/4" and 5" optional.

LATCH FACEPLATE: 2 1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2", for 2 3/4" backset. Optional 2 1/4" x 1" for 2 3/8" backset.

STRIKES: ASA strike standard, "T" and full lip strike available on request.

LATCH BOLT: 1/2" Throw solid brass, reversible for RH or LH applications. UL Listed.

ANSI STANDARDS: Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
