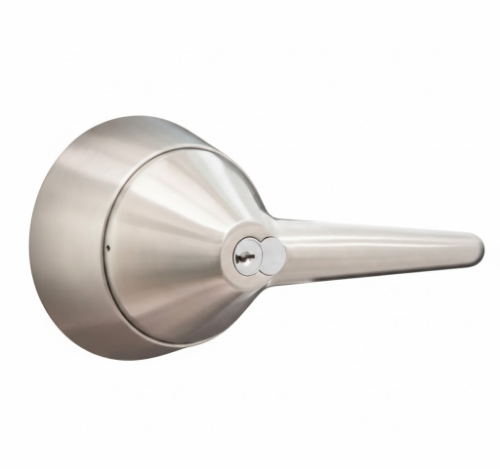

Cal-Royal ICLRC06 US32D Grade 1, Ligature Resistant Vestibule Lock - Stainless Stee - Accepts SFIC Corel

Cal-Royal LRC06 US32D Grade 1,Ligature Resistant VestibuleLock - Accepts Small-format Interchangeable Core (SFIC) (core not included) - Stainless Steel

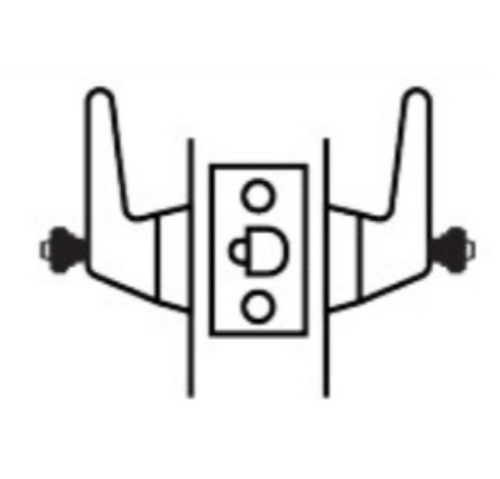

Function: ANSI F88 - Dead locking latch bolt operated by lever from either side except when outside lever is locked by key from inside. Latch bolt may be retracted by key in outside lever or by rotating inside lever.

For 1 ⅜" to 2" thickness doors

2 3/4" Backset Standard, 2 1/4" x 1 ⅛" Latch Faceplate,

2 ⅜", 3 3/4", 5" and 2 3/4" Anti-Friction Latch Optional

UL Listed, 1/2" Throw Solid Brass

Reversible for RH or LH applications

ASA Strike Standard

Heavy Duty Stainless Steel Rose and Lever Trim

Tamper Resistant Concealed Mounting Set Screws

Small Format IC available combinated or uncombinated, 6 or 7 pin cores with BEST, FALCON, and ARROW

For Behavioral and Health Care facilities

Lever clutch free-wheeling design helps to prevent intentional or accidental hanging.

The lever rotates when in locked or unlocked position to prevent excessive force and decreases the chance of the lever being broken or damaged

Anti-vandal cylinder guard is standard, deters forcible removal of cylinder with any type of wrench or hammer

Different functions available to satisfy individual security and safety requirements
