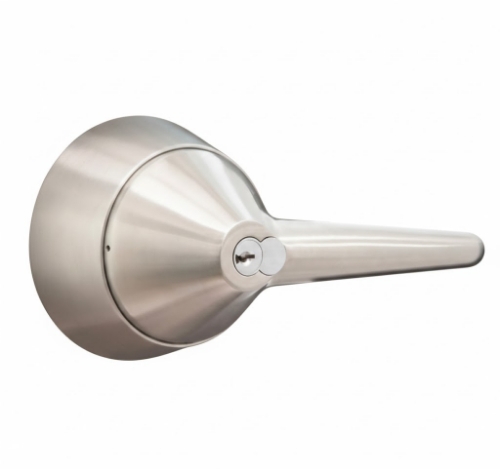

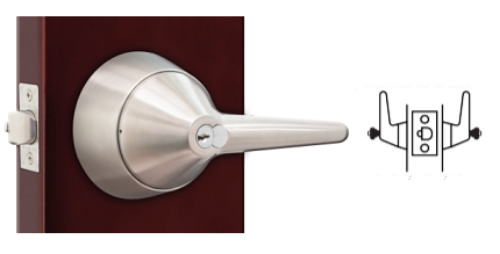

Cal-Royal ICLRC09 US32D Grade 1, Ligature Resistant Institution Lock - Stainless Steel - Accepts SFIC Core

Cal-Royal ICLRC09 US32D Grade 1, Ligature Resistant InstitutionLock - Stainless Steel -Accepts Small-formatInterchangeable Core (SFIC) (core not included)

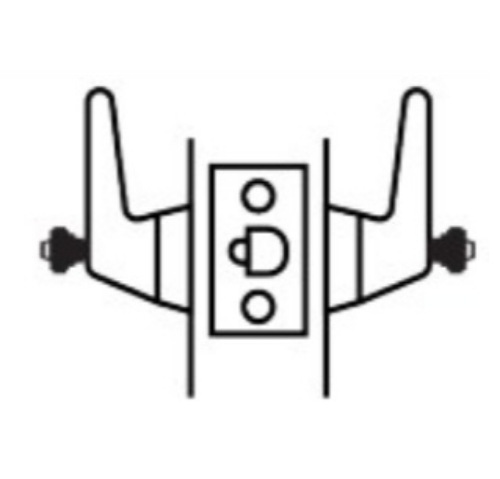

Function: ANSI F87 - Dead locking latch bolt operated by key in lever from either side. Both lever always fixed.

For 1 ⅜" to 2" thickness doors

2 3/4" Backset Standard, 2 1/4" x 1 ⅛" Latch Faceplate,

2 ⅜", 3 3/4", 5" and 2 3/4" Anti-Friction Latch Optional

UL Listed, 1/2" Throw Solid Brass

Reversible for RH or LH applications

ASA Strike Standard

Heavy Duty Stainless Steel Rose and Lever Trim

Tamper Resistant Concealed Mounting Set Screws

Small Format IC available combinated or uncombinated, 6 or 7 pin cores with BEST, FALCON, and ARROW

For Behavioral and Health Care facilities

Lever clutch free-wheeling design helps to prevent intentional or accidental hanging.

The lever rotates when in locked or unlocked position to prevent excessive force and decreases the chance of the lever being broken or damaged

Anti-vandal cylinder guard is standard, deters forcible removal of cylinder with any type of wrench or hammer

Different functions available to satisfy individual security and safety requirements
