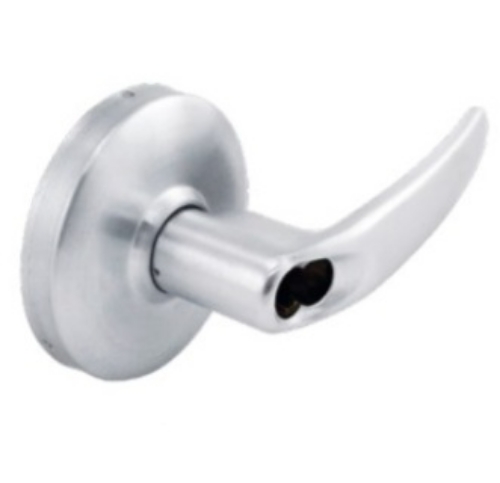

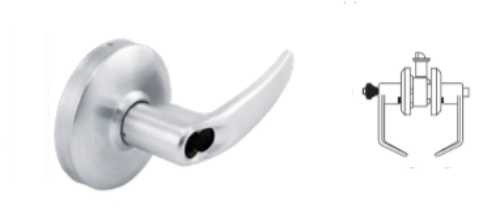

Cal-Royal ICSCAT101 Grade 1 Institution Lock - Accepts Schlage LFIC Core

Cal-Royal ICSCAT101 Grade 1, Institution Lock (Non-Clutch) - Accepts Schlage Large-format Interchangeable Core (LFIC) -Core Not Included

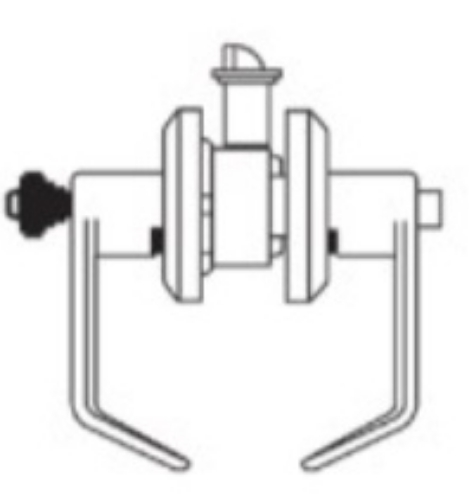

ANSI F87

Deadlocking latch bolt operated by lever from either side except when outside lever is locked by key or by push button on inside lever. Key in outside lever locks or unlocks outside lever. Outside key releases push button when locked from inside. Rotating inside lever or closing the door releases push button. (Non Clutch)

ANSI: A 156.2 Series 4000, grade 1.

Non-handed levers.

Backset: UL Listed 2 3/4" backset, 2 1/4" x 1 1/8" faceplate standard. 2-3/8" backset also available.

Strike: ASA - 4-7/8" x 1-1/4" Strike standard. 2-1/4" full lip or 2-3/4" x 1-1/8" T-strike also available.

Housing: Cold rolled steel and zinc dechromate finish for rust resistance with precision cast steel retractor. 2-1/8" diameter bore.

Trim: Thru-bolted assembly through door with separate spring cage for each lever. Matching design to SL Series Grade 2 levers.

Lever: Full length 4-3/4" lever handle with 3/8" return on GN and SPA Design.

Rose: Rose diameter 3-1/2".

Key removable outside lever for fast rekeying.

Concealed mounting screws.
