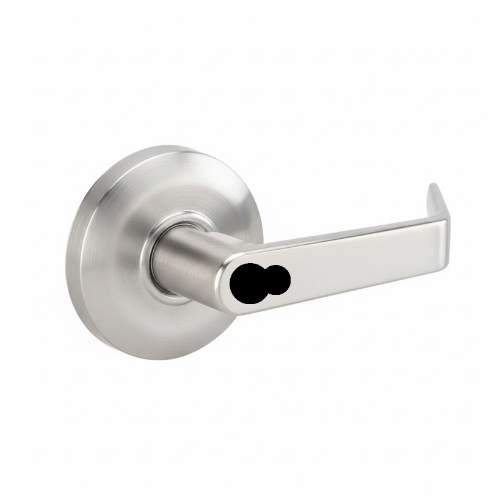

Cal-Royal ICSL03 Classroom Lock - Accepts SFIC Core

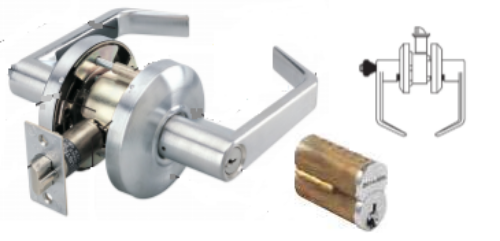

Cal-Royal ICSL03 Classroom Lock - Accepts Small-format Interchangeable Core (SFIC) (core not included)

Dead locking latch bolt operated by lever from either side except when outside lever is locked from outside by key. When outside lever is locked, latch bolt is operated by turning inside lever.

ANSI:Grade 2 Lock

Door Range:- 1-3/8" to 1-3/4" thickness doors.

Backset:- 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.

Front- 2-1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2".

Strike:ASA strike standard, "T" and full lip strike available on request.

Latchbolt- 1/2" Throw solid brass, reversible for RH or LH applications. UL listed.

Latch and Stick Screws - 8-32 X 1" FPH dual purpose.

Interchangeable core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

Keying with control key and masterkey available.

Tactile & Lead Lining - Available upon request.

Model:Cal-Royal ICSL03,Cal-Royal ICSL03US26D,Cal-Royal ICSL03US1,Cal-Royal ICSL03US3,Cal-Royal ICSL03US4,Cal-Royal ICSL03US10,Cal-Royal ICSL03US10BE,Cal-Royal ICSL03US26,

ANSI Standards - Meets or exceeds requirements of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim - Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
