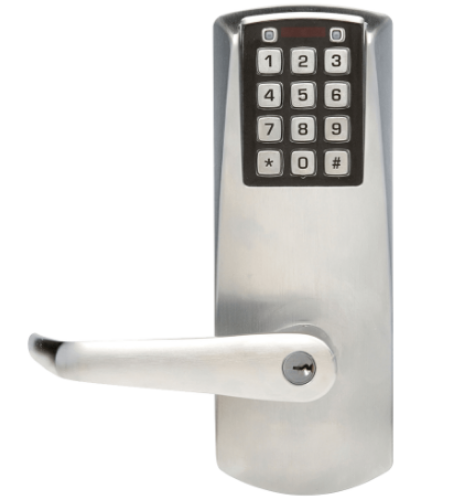

DormaKaba E201UXSLL-626-41 E-Plex 2000 Exit Trim, 100 Access Codes, 1,000 Audit Events, Rim, Mortise and SVR Devices, KIL, Schlage C Keyway, Satin Chrome

Dormakaba *E201U-XS-LL-626-41 Electronic Panic Device Trim Satin Chrome - Exit Trim*For: Rim, Mortise, Surface Vertical Rod

Used only for: Detex Rim # F1001, Detex Surface Vertical Rod #s 20/F20 Dorma Rim # F9300 Von Duprin Rim #s 89/99, Von Duprin Surface Vertical Rod #s 9827/9927 Precision Rim #s 21/FL21, Precision Surface Vertical Rod #s 22/FL22 Arrow Rim # 3800* Sargent Rim # 8800* *requires 062-514-148 Kit; see page 131 in accessories section

( Exit Device Is Not Included )

Key Override Kaba 6 Pin Cylinder Schlage "C" Keyway, Cylinder Included

Heavy Duty Commercial Grade 1 Lockset with ADA Lever

**Users- Multiple User-100 Codes

3 Operation Modes - PIN access, Passage, Lockout.

Lock is easily programmed via keypad or with optional Eplex Software

Audit Trail - Most recent 1000 lock events are recorded, software is required to view events.

Non-handed, works for Right Hand and Left Hand Doors

5" Minimum Stile

1¾" (44 mm) to 2¼" (57 mm); pre-assembled to accommodate doors 1¾" (44 mm) to 2⅛" (54 mm)

Indoor/Outdoor Approved

Two Year Warranty from date of installation

**Model: Dormakaba E201U, E201UXSLL, E201UXSLL626, E201UXSLL26D, E201UXSLL62641, Eplex 2000
