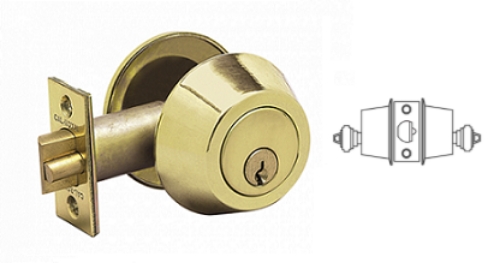

Cal-Royal KWGLT330 Standard Duty Grade 2, Double Cylinder Gate Latch - (2 3/8" backset)

Cal-Royal KWGLT330*Standard Duty Grade 2, Double Cylinder Gate Latch - ANSI:E0143  (2 3/8" backset)*

FUNCTION:Dead locking latch bolt retracted by key from either side. Otherwise, always locked.

MATERIAL:Wrought brass or Stainless Steel.

DOOR RANGES:Adjustable 1 3/8" (35mm) to 1 3/4" (45mm) door thickness.

BACKSET:  2-3/8"

DEADBOLT FACEPLATE:Standard 2 1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1 1/8" wide door preparations.

BORE DIAMETER:1" for latch, 1 1/2" or 2 1/8" for lock housing.

CYLINDER & KEYWAY:5-pin Kwikset KW1 Keyway standard.

STRIKE:1 1/8" x 2 3/4" square corner.

Conforms with ANSI A 156.2 Series 4000, Standard Duty GRADE 2

FINISHES:US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US10B - OIl Rubbed Bronze, US15 - Satin Nickel, US5 - Antique Brass

MODEL:Cal-Royal Series,KWGLT330 , KWGLT330 US26D, KWGLT330 US3, KWGLT330 US4, KWGLT330 US5, KWGLT330 US10, KWGLT330 US15, KWGLT330 US10B, KWGLT330 US1, KWGLT330 US26. KWGLT330US26D, KWGLT330US3, KWGLT330US4, KWGLT330 US5, KWGLT330US10, GL330KWGLT330US15, KWGLT330US10B, KWGLT330US1, KWGLT330US26.
