LCN 5036 REG Concealed (in tube) Door Closer - Size 6

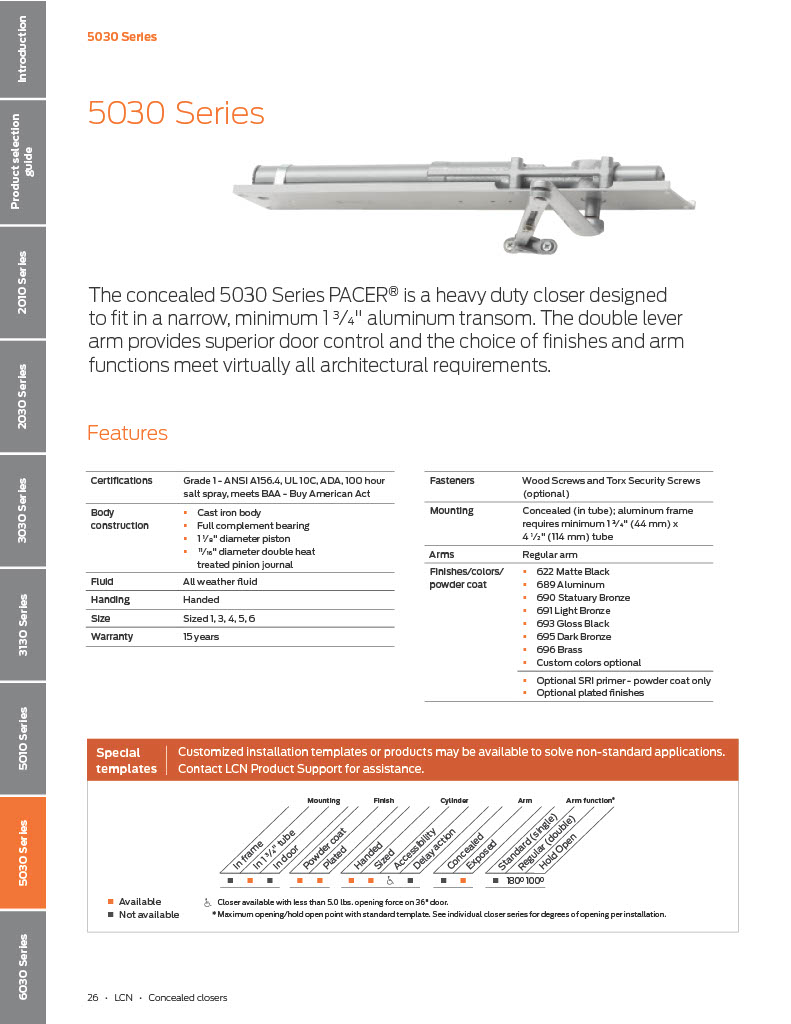

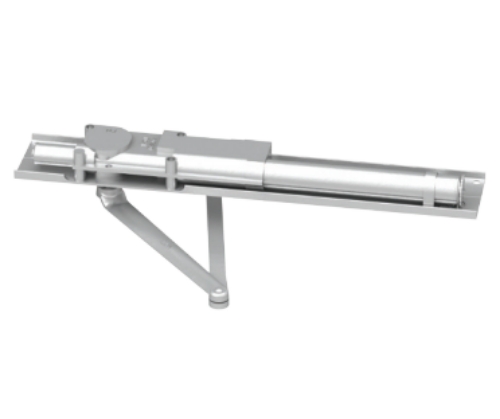

LCN 5036 Concealed (in tube) Door Closer - Size 6

Size 6: for Interior door width 42 (1067mm) to 48" (1219 mm), Exterior (and Vestibule) door 42" (1067 mm) to 48" (1219 mm)

Body Construction:Cast Iron Body -  Full Complement Bearing - 1-1/8˝ Diameter Piston - 11/16˝ Diameter Double Heat Treated Pinion Journal

Fluid:All Weather Fluid

Fasteners:Wood Screws

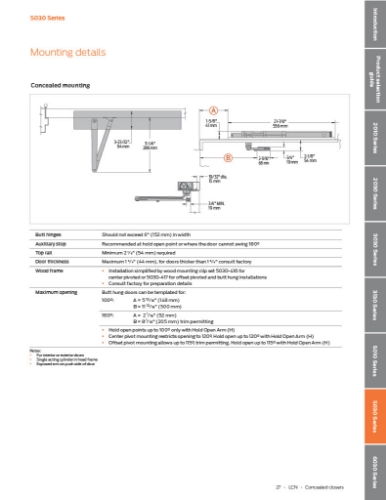

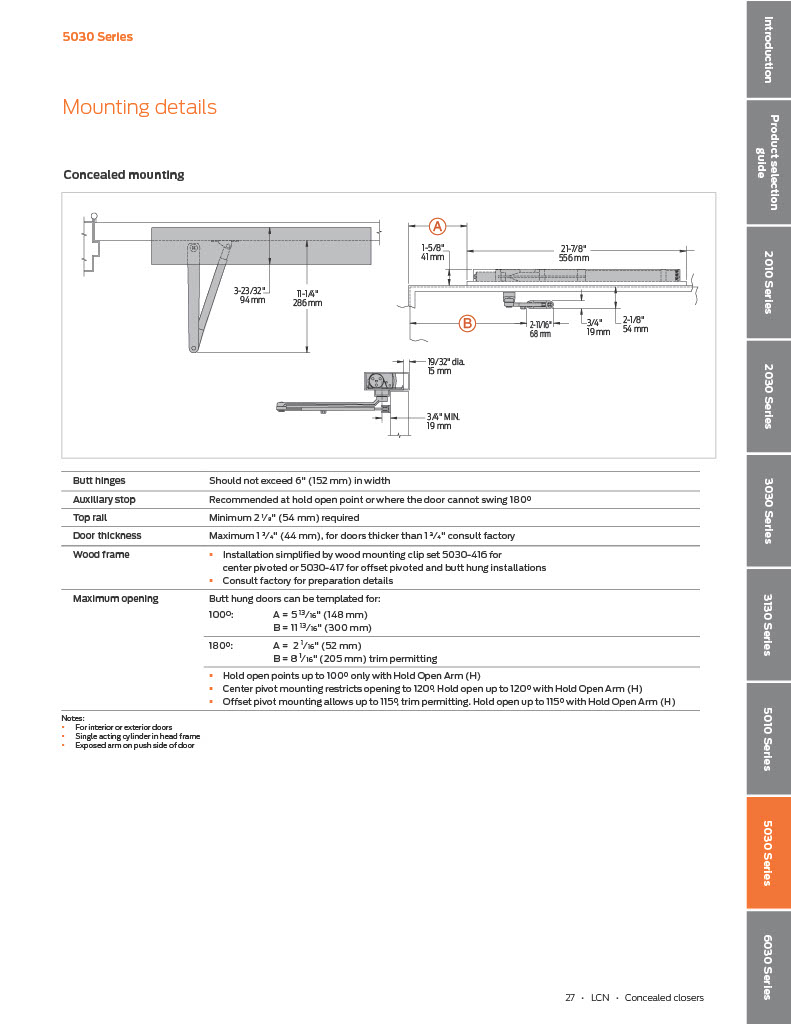

Mounting:Concealed (in tube); aluminum frame requires minimum 1-3/4˝ (44 mm) x 4-1/2˝ (114 mm) tube

Top Rail:Minimum 2-1/8˝ (54 mm)required

Door Thickness:Maximum 1-3/4˝ (44 mm),

Certifications:  Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty:15 years

Model:LCN 5036-REG LH AL, 5036REGLHAL, 5036LHAL, 5036LH689, 5036ALLH, 5036-REG RH AL, 5036REGRHAL, 5036RHAL, 5036RH689, 5036ALRH
