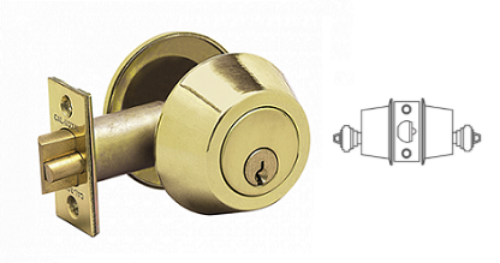

Cal-Royal KWGLT330234 Grade 2, Double Cylinder Gate Latch - (2 3/4" backset)

Cal-Royal KWGLT330234*Standard Duty Grade 2, Double Cylinder Gate Latch - ANSI:E0143  (2 3/4" backset)*

FUNCTION:Dead locking latch bolt retracted by key from either side. Otherwise, always locked.

MATERIAL:Wrought brass or Stainless Steel.

DOOR RANGES:Adjustable 1 3/8" (35mm) to 1 3/4" (45mm) door thickness.

BACKSET:  2-3/4"

DEADBOLT FACEPLATE:Standard 2 1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1 1/8" wide door preparations.

BORE DIAMETER:1" for latch, 1 1/2" or 2 1/8" for lock housing.

CYLINDER & KEYWAY:5-pin Kwikset KW1 Keyway standard.

STRIKE:1 1/8" x 2 3/4" square corner.

Conforms with ANSI A 156.2 Series 4000, Standard Duty GRADE 2

FINISHES:US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US10B - OIl Rubbed Bronze, US15 - Satin Nickel, US5 - Antique Brass

MODEL:Cal-Royal Series,KWGLT330234 , KWGLT330234 US26D, KWGLT330234 US3, KWGLT330234 US4, KWGLT330234 US5, KWGLT330234 US10, KWGLT330234 US15, KWGLT330234 US10B, KWGLT330234 US1, KWGLT330234 US26. KWGLT330234US26D, KWGLT330234US3, KWGLT330234 US4, KWGLT330234 US5, KWGLT330234 US10, GL330KWGLT330234 US15, KWGLT330234 US10B, KWGLT330234 US1, KWGLT330234 US26.
