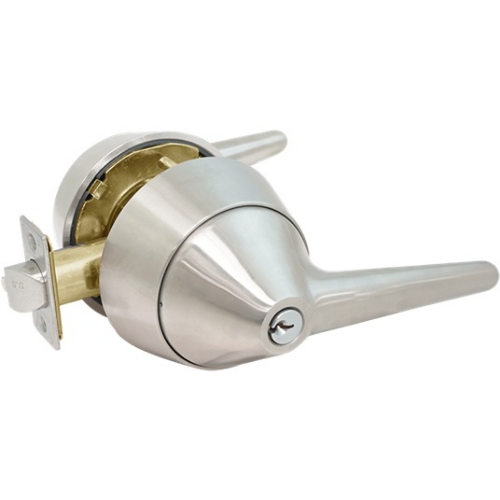

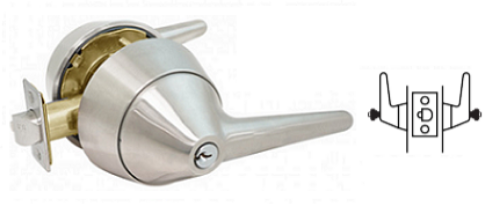

Cal-Royal LRC04 US32D Grade 1, Ligature Resistant Communicating Lock - Stainless Steel

Cal-Royal LRC04 US32D Grade 1, Ligature Resistant Communicating Lock - Stainless Steel

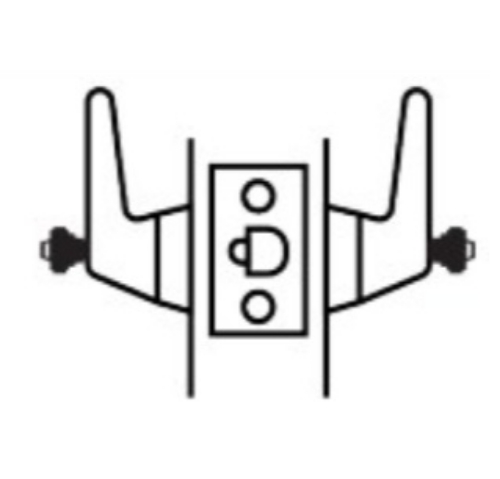

Function: ANSI F80 - Dead locking latch bolt operated by lever from either side. Turning key in either lever locks or unlocks its own lever independently

For 1 ⅜" to 2" thickness doors

2 3/4" Backset Standard, 2 1/4" x 1 ⅛" Latch Faceplate,

2 ⅜", 3 3/4", 5" and 2 3/4" Anti-Friction Latch Optional

UL Listed, 1/2" Throw Solid Brass

Reversible for RH or LH applications

ASA Strike Standard

Heavy Duty Stainless Steel Rose and Lever Trim

Tamper Resistant Concealed Mounting Set Screws

6-Pin Solid Brass Schlage "C" Keyway Standard

For Behavioral and Health Care facilities

Lever clutch free-wheeling design helps to prevent intentional or accidental hanging.

The lever rotates when in locked or unlocked position to prevent excessive force and decreases the chance of the lever being broken or damaged

Anti-vandal cylinder guard is standard, deters forcible removal of cylinder with any type of wrench or hammer

Different functions available to satisfy individual security and safety requirements
