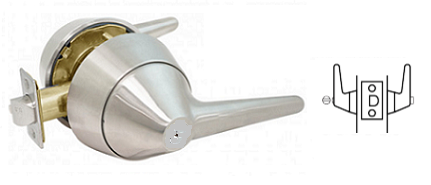

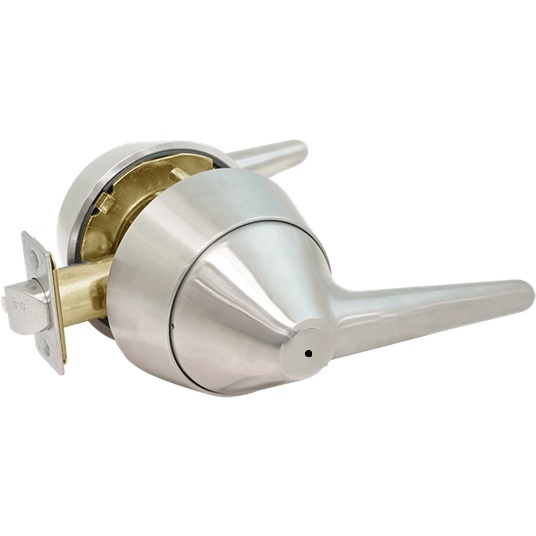

Cal-Royal LRC20 US32D Grade 1, Ligature Resistant Privacy Lock - Stainless Steel

Cal-Royal LRC20 US32D Grade 1, Ligature Resistant Privacy Lock - Stainless Steel

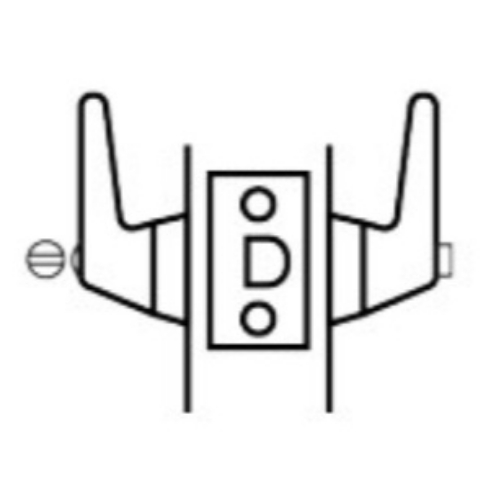

Function: ANSI F76 - Latch bolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside. Turning inside lever or closing door releases push button.

For 1 ⅜" to 2" thickness doors

2 3/4" Backset Standard, 2 1/4" x 1 ⅛" Latch Faceplate,

2 ⅜", 3 3/4", 5" and 2 3/4" Anti-Friction Latch Optional

UL Listed, 1/2" Throw Solid Brass

Reversible for RH or LH applications

ASA Strike Standard

Heavy Duty Stainless Steel Rose and Lever Trim

Tamper Resistant Concealed Mounting Set Screws

For Behavioral and Health Care facilities

Lever clutch free-wheeling design helps to prevent intentional or accidental hanging.

The lever rotates when in locked or unlocked position to prevent excessive force and decreases the chance of the lever being broken or damaged

Anti-vandal cylinder guard is standard, deters forcible removal of cylinder with any type of wrench or hammer

Different functions available to satisfy individual security and safety requirements
