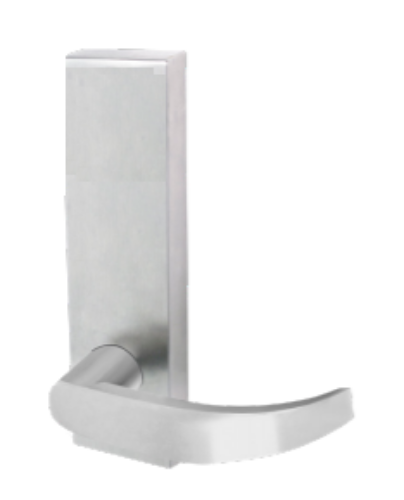

Cal-Royal RLESC6630 Passage Exit Device Escutcheon Lever Trim

Cal-Royal RLESC6630 Passage Exit Device Escutcheon Lever Trim

Trim always operable and free. ANSI Function (14)

Non-Ferrous Alloy Material

Clutch Mechanism

Double Heavy Duty Spring Support to prevent sagging and enhance operation

Grade 1, Thru-Bolted design. Non-Handed design.

Easily field reversible

Hardened Steel Heavy Duty Spindle.

Available for Fire and Non-Fire Rated Rim and Vertical Rod Exit Devices

Standard 6-Pin Schlage "C" Mortise Cylinder included

Door Thickness:Standard 1-3/4". For 2-1/4" thick door use additional part# TAIL3.

Escutcheon dimensions:2 3/4" width x 8 7/16" length. Lever length: 4 9/16". Fits and covers 2 1/8" 161 cutout

Keyway:6-Pin solid brass "C" keyway Mortise Cylinder standard. Optional: Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Sargent LA-LB-LC, Falcon/Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal HSK High Security Cylinders.

(IC)Interchangeable Core: Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

(ICSC)Interchangeable Core: Indicates function available with Schlage Full size format Interchangeable Core.
