Product Details

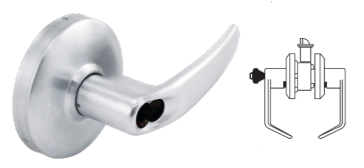

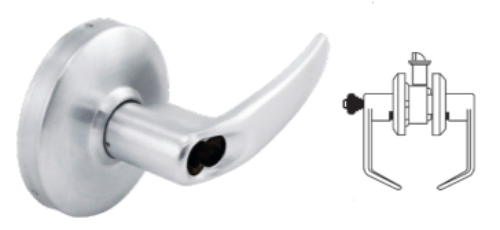

Cal-Royal SARICC-2-AT03*Grade 2, Classroom Lock - Communicating Lock - Accepts SargentLarge-formatInterchangeable Core (LFIC) (core not included)- ANSI F84*- With Clutch
Dead locking latch bolt operated by lever from either side except when outside lever is locked from outside by key. When outside lever is locked, latch bolt is operated by turning inside lever.
DOOR RANGES:1 3/8" to 1 3/4" thickness doors.
BACKSET:2 3/4" Standard, 2 3/8", 3 3/4" and 5" optional.
LATCH FACEPLATE:2 1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2",
for 2 3/4" backset. Optional 2 1/4" x 1" for 2 3/8" backset.
STRIKES:ASA strike standard, "T" and full lip strike available on request.
LATCH BOLT:1/2" Throw solid brass, reversible for RH or LH applications. UL Listed.
ANSI STANDARDS:Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
