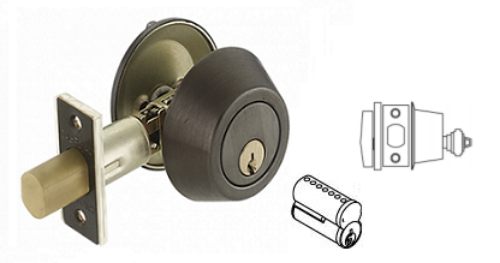

Cal-Royal SCICT220 Grade 2, Single cylinder deadbolt - Accepts Schlage LFIC Core

Cal-Royal SCT220 Standard Duty Grade 2, Single cylinder deadbolt -*Accepts Schlage Large format Interchangeable Core (LFIC) (core not included) -* ANSI:E0153

FUNCTION:Dead locking latch bolt retracted by key from outside or by thumb turn on inside.

MATERIAL:Wrought brass or Stainless Steel.

DOOR RANGES:Adjustable 1 3/8" (35mm) to 1 3/4" (45mm) door thickness.

BACKSET:Adjustable 2-3/8" or 2-3/4".

DEADBOLT FACEPLATE:Standard 2 1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1 1/8" wide door preparations.

BORE DIAMETER:1" for latch, 1 1/2" or 2 1/8" for lock housing.

STRIKE:1 1/8" x 2 3/4" square corner.

Conforms with ANSI A 156.2 Series 4000, Standard Duty GRADE 2 FINISHES: US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US10B - OIl Rubbed Bronze, US15 - Satin Nickel, US5 - Antique Brass

MODEL:Cal-Royal Series,SCICT220, SCICT220US26D, SCICT220US3, SCICT220US4, SCICT220US5, SCICT220US10, SCICT220US15, SCICT220US10B, SCICT220US1, SCICT220US26.
