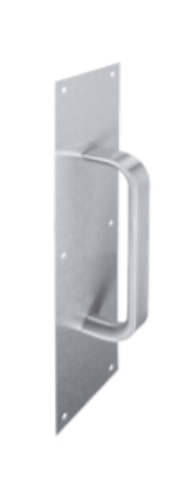

PDQ 865-5D, 6" x 16" Plate Size, 1" Flat 1/2 Round Straight Pull - 8" CTC

About this item

PDQ 86-5-5D, 6" x 16" Plate Size, 1" Flat 1/2 Round Straight Pull - 8" CTC

SPECIFICATIONS:

PLATE SIZE:
- 6" x 16".
Mounting Options:
1 - TYPE 1 Thru Bolt for Metal, Composite or Wood Door (Default).
12 - TYPE 12 Thru Bolt for Metal, Composite or Wood Door, Decorative Head.
PULL SERIES:
5D - 1" DIA Flat with half round facing inboard towards the door.
8" Center to Center.
OVERALL PROJECTION:
- 2-1/16".
THICKNESS:
- 0.050".
PLATE MOUNTING FASTENERS:
-  #6 x 5/8 OH PH SMS.
FINISHES:
- 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Oil Rubbed Bronze, 628 (US28) Aluminum, 630 (US32D) Satin Stainless Steel (Grade 304).
-  Available with Antimicrobial Coating 630 (US32D) only.

PDQ 8655D, 8655D, 86-5-5D, PDQ 86-5-5D, 86-5-5D PDQ, 8655D PDQ, PDQ8655D, 8655DPDQ, PDQ86, 86PDQ, PDQ PULL PLATES

Resources

• PushPlates-Pulls-Brochure.pdf
